CS64U - Aten - 4 Port USB VGA Cable KVM Switch (USB computers from USB console) with Audio (1.8m) low cost 4 port KVM switch

CS64U - (PMCE417)

Description:

Aten/ CS64U is a 4-Port USB KVM Switch which has a handy design integrating with 6 feet of cables and built-in USB. It can control 4 servers via a single console. USB KVM Switch (Control 4 x USB computers from 1 x USB console) Our total USB solution. Link four USB computers to one USB console for a complete USB system compatible with all operating platforms: PC, Linux, Mac and Sun NOT RECOMMENDED FOR USE WITH WIDE SCREEN MONITORS. by Aten UK technical. If using wide screen call us or see the newer CS1734B

Features:

• One USB console controls four USB computers
• Compact design, built-in 1.8 m cables
• Hotkey selection for OS and keyboard language
• Computer Selection via hotkey
• Multiplatform support - Windows, Linux, Mac, Sun
• Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
• USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
• Supports multifunction and wireless keyboards and mice NEW!
• All-in-one design
• With speaker support
• Superior video quality – up to 2048 x 1536; DDC2B
• Auto Scan function to monitor computer operation
• Non-powered
• Sun/Mac keyboard support and emulation*
• Firmware upgradable NEW!

* 1. PC keyboard combinations emulate Sun/Mac keyboards

2. Sun/Mac keyboards only work with their own computers

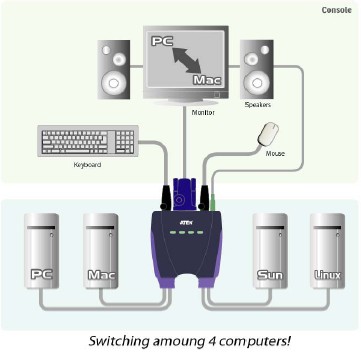

CS64U - DIAGRAM pmce0124


Specification:

Package Contents

1x 4-Port USB KVM Switch with Attached Cables
1x User Instructions

4-Port USB KVM Switch

Computer Connections 4
Port Selection Hotkey

Connectors

Console Ports 1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
KVM Ports 4 x HDB-15 Male (Blue)
4 x USB Type A Male
4 x 3.5mm Audio Jack Male (Green)

LEDs

Selected 4 (Green)
Cable Length
Computer 1.8 m

Emulation

Keyboard / Mouse USB
Video 2048 x 1536 @ 60Hz; DDC2B
Scan Interval 1-99 seconds

Environmental

Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-condensing

Physical Properties

Housing Plastic
Weight 0.73 kg ( 1.61 lb )
Dimensions (L x W x H) 9.41 x 9.72 x 2.60 cm (3.7 x 3.83 x 1.02 in.)

Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Click here for further information

compatible products

£53.66 £64.39 (Inc vat)

Qty:
