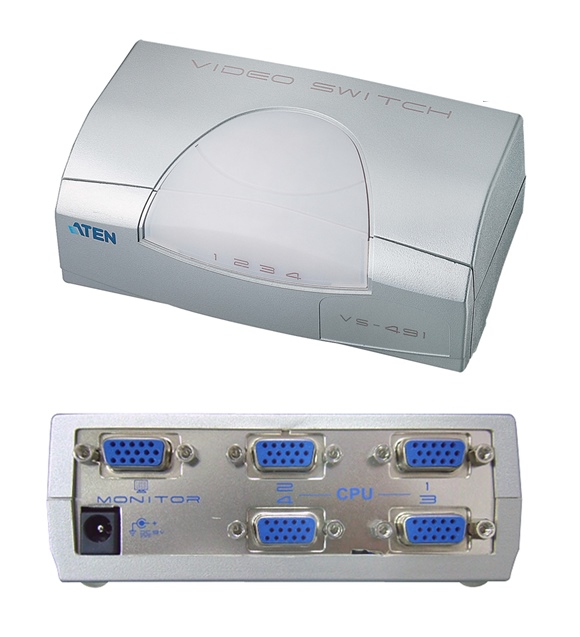

VS491 - ATEN - Video Switch on a Single Monitor from 4 Computer

video switch

Description:

4-Port Video Switch The VS491 is a video switch with 4 ports. It allows 4 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buy monitors for each computer additionally.

Features:


- Displays the video output of two computers on a single monitor or projector.
- Computer selection via pushbutton switch.
- Electronic switching for greater reliability and durability.
- Easy Installation - No Software Required.
- Long distance transmission - up to 10m
- High resolution video - up to 1920 x 1440.
- DDC, DDC2, DDC2B Compatible.
- Supports VGA, XGA. SVGA, UXGA and Multisync monitors.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

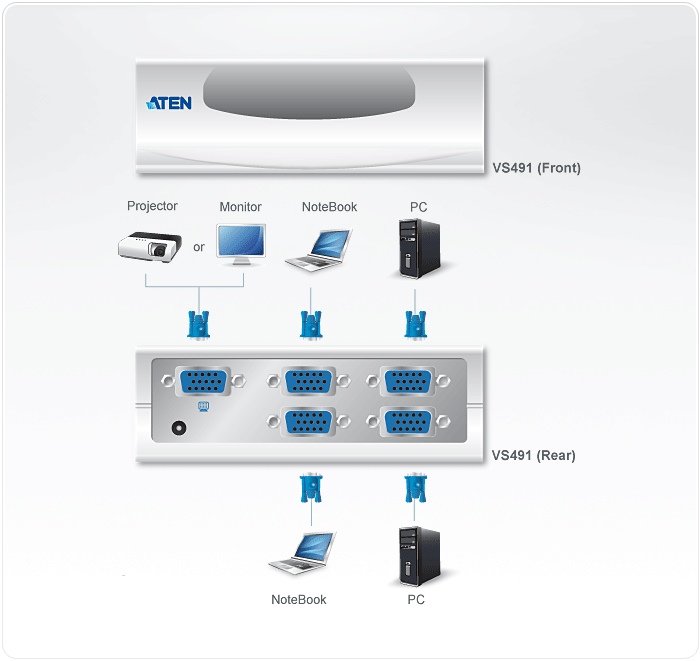

Video switch 4 port setup

Specification:


Computer Connections 4
Port Selection Pushbutton
Connectors Video In 4 x HDB-15 Female (Blue)
Video Out 1 x HDB-15 Female (Blue)
Power 1 x DC Jack
Switches Port 1 x Pushbutton
LEDs Selected 4
Video 1920 x 1440 @ 60Hz
Signal Range Up to 10m (33')
Power Consumption DC9V, 1.35W (Max.)
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical
Properties Housing Plastic/Metal
Weight 0.18 kg
Dimensions ( L x W x H ) 12.00 x 6.50 x 4.40 cm

Package Contents:

1x 4-Port Video Switch
1x Power Adapter
