VE150A VGA Video over UTP Extender Pair

AKVE150 extender pair .edxnpm

Description:

VGA Video over UTP Extender Pair AKVE150 video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5 cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

Features:


- Uses Cat 5 cable to connect the local and remote units.
- Supports a local and a remote display.
- Transmission distance of up to 150m / 500.
- 16 position adjustable video gain control to compensate for distance.
- Easy installation.
- Multiplatform support: supports PC, Mac, Sun, and Linux, systems.
- High video resolution - up to 1280 x 1024 at 150m (500').
- Supports DDC for the local monitor.
- Supports VGA, SVGA, XGA, SXGA and Multisync monitors.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

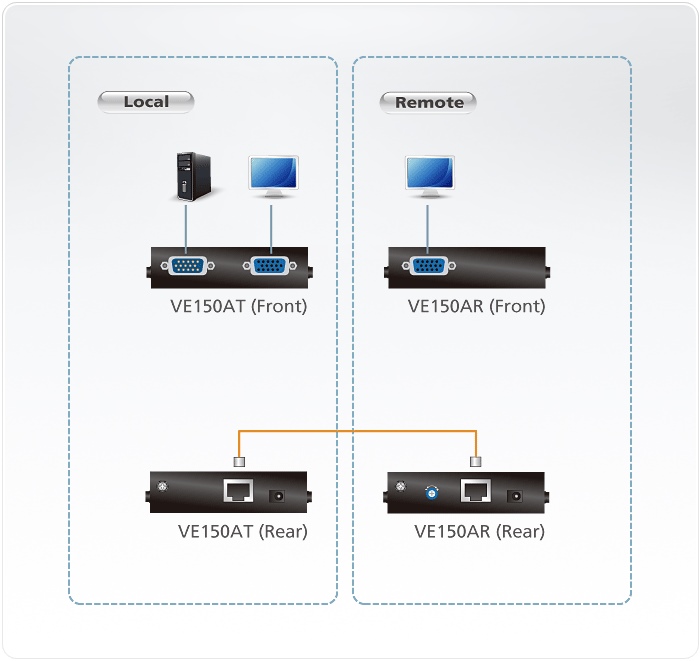

AKVE150 setup picture

Specification:

Function AKVE150L &VE150R
Computer Connection 1 N/A
Connectors Console Video 1 x HDB-15 Female (Blue)
Computer Video 1 x HDB-15 Male (Blue) N/A
Unit to Unit 1 x RJ-45 Female
Power 1 x DC Jack (Black)
LEDs Power 1 (Orange)
Switches Picture
Compensation N/A 1 x 16 Position Switch
Video 1280 x 1024 @ 60Hz
Cable Length Up to 150m (500')
Power Consumption DC5.3V, 1.2W (Max.)
Environment Operating Temp. 0 -50˚C
Storage Temp. -20 -60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.25 kg
Dimensions (L x W x H) 11.90 x 8.60 x 2.30 cm

Package Contents:
1x Video Extender (Local Unit)
1x Video Extender (Remote Unit)
2x Power Adapters
1x VGA Cable (1.8m)
1x User Guide
