Unfortunately we do not stock the DISCONTINUED / CI-DC-VP-125 dataCat vp125 KIT, PS/2 & VGA 125 mtr KVM Extender Kit, incl transmitter and receiver. High Resolution
currently.

Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.

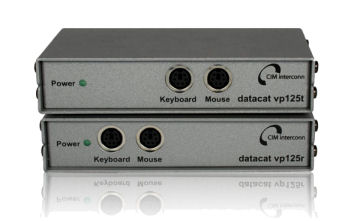

DISCONTINUED / CI-DC-VP-125 dataCat vp125 KIT, PS/2 & VGA 125 mtr KVM Extender Kit, incl transmitter and receiver. High Resolution

Datacat PS2 extender kit

Description:

The dataCat vp125 series of KVM extenders allow the keyboard, monitor and mouse to be placed up to 125m from the computer. The system consists of a transmitter and a receiver unit connected by a Cat 5/6 cable. A high quality VGA image is assured by the powerful equalization circuits.

Features:

- Extends keyboard, video and mouse up to 125 meter away from the computer
- Excellent video quality: supports resolutions up to 2048 x 1536 at 50 meter, and
1280 x 1024 at 125 meter
-Transmission over Cat 5, 5e, or Cat 6, EIA/TIA 568 Pinout
-Emulation of PS/2 keyboard and mouse during boot
-Compatible with all standard VGA signals (RGBHV).
-Compatible with Win 98ME, Win2000, WinXP, Win2000/2003 server, Linux and
Mac OS 9.2 and OSX.
-Compatible with most PS/2 keyboard and mouse
-small form factor
- Power supply and system cables are included.

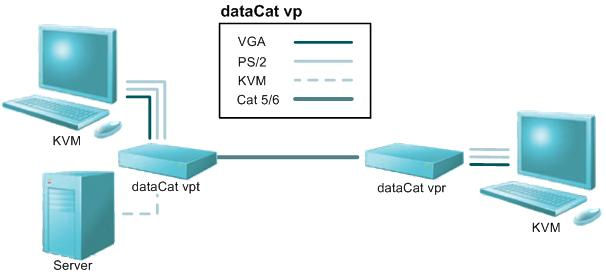

Datacat PS2 VP typical setup

Specification:

compatible products
