DVI-2303-AOC-M 3 Mtr DVI-AOC Cable DVIGear HyperLight DVI-23xxx-AOC Series
( Non-Detachable Shielded Metal Case )

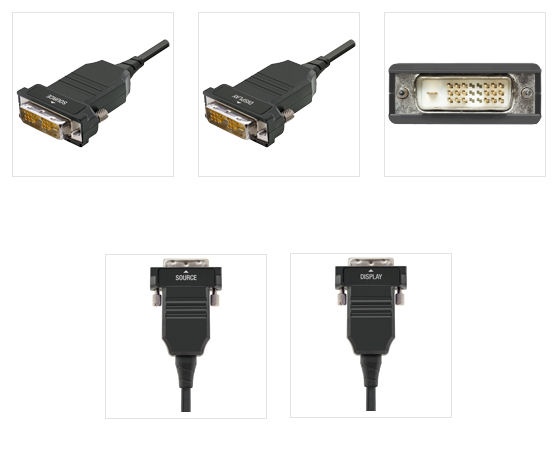

DVI HyperLight AOC Metal Shielded

Description:

DVI-23xxx-AOC-M Series These cables provide robust performance with shielded metal DVI connectors in a rugged yet compact and lightweight form factor. They are fully HDCP compliant and support signals with data rates up to 4.95 Gbps. These cables support any Single-Link DVI resolution with cable lengths up to 100m (328.1 ft.). DVIGear’s HyperLight® Series is a new generation of advanced Active Optical Cables (AOC) that employs cutting edge technology to deliver unprecedented resolution, performance and value. HyperLight DVI AOC cables provide robust performance in a rugged, yet compact and lightweight, form factor. They are fully HDCP compliant, compatible with signal data rates up to 4.95 Gbps., and support any Single-Link DVI resolution with cable lengths up to 100 meters (328 ft.). These cables are plenum rated (UL CMP-OF), compact, lightweight and highly flexible. Constructed using a hybrid design of 4x POF (Polyfluorinated Optical Fiber) and 6x copper wires, they are rugged, yet pliable, with a minimum bend radius of only two millimeters. The cables draw power from the connected DVI source, eliminating the need for an external power supply. HyperLight cables are designed for use in mission-critical applications where image quality and dependability are paramount. The video signals are transmitted over four optical fibers, which make them immune to interference from environmental noise. The optical transmission path provides a very low RFI / EMI profile, allowing the cables to be installed in sensitive applications with strict security requirements. Shielded metal DVI connectors provide increased immunity to RFI / EMI, allowing the cables to be used in environments with high levels of ambient interference. HyperLight AOC cables are ideally suited for applications that require ultra-high resolution DVI signals to be extended over long cable runs with flawless image quality.

Features:

Lightweight, compact, flexible, plenum-rated Active Optical Cables (AOC)
Supports DVI 1.0 and HDCP 1.4
Supports HDMI using optional adapter cables
Supports data rates up to 1.65 Gbps / lane or
4.95 Gbps total
Extends any DVI Single-Link resolution up to
328 ft. (100 meters)

Non-detachable DVI docking connectors with shielded metal housing for improved RFI/EMI immunity
Low RFI / EMI dispersion for sensitive applications
Powered by the DVI source, no AC power adapter needed
Supports DDC communications for EDID and HDCP



Specification:

Performance
Standards Compliance DVI 1.0, HDCP 1.4, UL CMP-OF (File E471410)
Maximum Pixel Clock Frequency 165 MHz
Maximum Video Bit Rate 1.65 Gbps/TMDS Lane, 4.95 Gbps total (Single-Link DVI)
Maximum Color Depth Up to 24 bits/pixel
Maximum Supported Resolutions 1920x1200, 2048x1080
Digital Audio Support 1–8 channels, 16 or 24-bit Linear PCM, 32–192 kHz sampling rate
Connections
DVI Input / DVI Output 1x 18+1 DVI-D Male Connector
Power No external power supply is required.
DDC Support
EDID Support EDID communications are fully supported
HDCP Support HDCP 1.4
Optical
Optical Technology 4x Discrete Optical Channels, 10 GHz, 850 nm
Optical Transmitter Tx Module: 4x 850 nm Multi-Mode VCSELs
Optical Receiver Rx Module: 4x GaAs PIN Photo Diodes
Cable
Fiber Cable Type Hybrid cable with 4x POF (Polyfluorinated Optical Fiber) and 6x copper members
Cable Jacket Plenum-Rated, Black
Standard Lengths (meters)(1) 3, 5, 7.5, 10, 12.5, 15, 20, 25, 30, 40, 50, 60, 75, 100
Standard Lengths (feet)(1) 9.8, 16.4, 24.6, 32.8, 41.0, 49.2, 65.6, 82.0, 98.4, 131.2, 164.0, 196.9, 246.1, 328.1
Maximum Cable Length 328 ft / 100 meters
Mechanical – Cable
Product Weight Varies with length
Maximum Tensile Load > 200N
Minimum Bend Radius 2 mm (fiber and jacket)
Crush Resistance > 500N
Cable Outside Diameter (W x H) 0.2" x 0.1" (5.1 mm x 2.9 mm)
Mechanical – Tx and Rx Docking Plugs
Construction Non-detachable DVI connectors with shielded metal enclosures for high
RFI / EMI immunity
Dimensions (L x W x H) 2.1" x 1.56" x 0.59" (53.3 x 39.5 x 14.9 mm)
Environmental
Operating Temperature -4° to +158° F (-20° to +70° C)
Storage Temperature -4° to +185° F (-20° to +85° C)
Operating / Storage Humidity 5% to 85% (non-condensing)
Power Requirements
Power Source Powered from DVI source device
Power Consumption < 0.3 watt maximum
Regulatory Approvals
Fiber Optic Cable FCC, UL, CE, RoHS
Warranty
Limited Warranty 3 Years
Model Number
DVI-23xxx-AOC-M DVI HyperLight Active Optical Cable ( xxx = length in meters )
Accessories
Included 1x Quick Start Guide
Optional DVI Female to HDMI Male Adapter Cable - part number DVI-8511c.
Note 1: These cables can support HDMI applications using optional adapter cables.

Note 2: All specifications are subject to change without notice.
