Unfortunately we do not stock the NO LONGER AVAILABLE - DEC 2007 -FJB-NC14008-32RSR-B082 Fujitsu Bundle. Multiplatform 8 -port Fujitsu KVM Switch & IP Access Unit FX-7001NP KVM access over IP Deal Bundle currently.

Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.

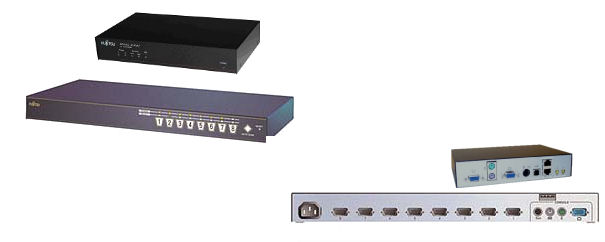

NO LONGER AVAILABLE - DEC 2007 -FJB-NC14008-32RSR-B082 Fujitsu Bundle. Multiplatform 8 -port Fujitsu KVM Switch & IP Access Unit FX-7001NP KVM access over IP Deal Bundle

IP-KVM acess unit and separate multiplatform switch

Description:

Fujitsu Equipment Bundle. IP Access to 8port Multiplatform Fujitsu KVM Switch Set. Plus local control access IP KVM-Unit allows you to remotely control servers through Internet access in the same way that you would do if your keyboard, screen and mouse would be directly connected to the server. You can reboot, access the BIOS, and even install new software through Fujitsu’s IP KVM-switch. It is the key to remotely maintain a mission critical server. This unit also gives you 1 x USB Virtual Disk Function ( Virtual Media USB Feature ) By connecting via USB to the host server, this product can be emulated to the host server as a USB floppy disk, USB RAM disk, or USB CD-ROM drive. Virtual floppy disk and RAM disk provides memory area of this product to the host server as a virtual drive. This enables file data exchange between the host server and remote terminal units and facilitates the host server deployment process. The Fujitsu 8Port Multiplatform KVM Switch with Sun Keyboard user port plus PS2 as standard. Where desk space or Server room space is at a premium, or where a single operator uses multiple systems, this KVM switch through its multi processor design ensures the seamless stable switching operation between any attached systems. The unit is future proof with built in support for PS/2, Sun I/O, Sun USB, MAC and PC USB out of the box. A simple cable exchange selects the appropriate host interface. The user has the choice of Hot Keys (Where configurable keys on the host keyboard that can be dedicated to the switching operation, for example pressing the key twice), or Front Mounted Buttons or from the intuitive OSD (On Screen Display). Supplied with rack mount kit.

Features:

Enables remote management from anywhere in the world over IP

Additional local console connection provided:
-Direct console management can be made anytime, even while the network is down.

Advantage of hardware:
-Unlike software-based products, such as a remote desktop, keyboard and mouse operations are smooth. It is capable of remote access on the BIOS level, which is impossible with software products. This enables server management at the essential level.

-Dual power options concepts for safety back-up

REMOTE ACCESS KVM UNIT:
-Operation by JAVA applet on the web browser.
-No OS or Browser restriction
-High Quality Video Operation supported: Up to UXGA (1600 x 1200)
-Modified key layouts such as “Ctrl + Alt + Del”, are prepared in English, Japanese, German, and Korean and unique keys for SUN operation are selectable in the virtual key window.
-1 x Addition Virtual Disk Function via USB port.

SWITCH
Configurable Hot keys
Support from 8 to 64 Servers (Cascadeable).

Support for future system types with Internet downloadable firmware.

1.8M. 3M and 5M cables available.

Extendable front face for easy rack mounting of the console connections close to the back edge of the rack.

Support for USB, PC PS/2 and SUN systems, both Sun I/O and Sun USB

Switching options can be chosen from OSD (On Screen Display), front panel switches and Hotkey switching with full support of scrolling mice and indicator lights

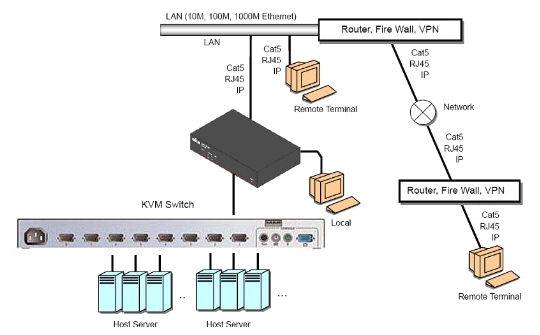

Fujitsu 8and16 port switch setup

Specification:

SEE INDIVIDUAL PRODUCTS FOR FULL ITEM SPECIFICATIONS.

Fujitsu NC14004-B082 FS-1008MT KVM Multiplatform 8-port Fujitsu KVM Switch PS/2, USB, Sun I/O, Sun USB +Rack Kit

Fujitsu NC14004-B162 FS-1016MT KVM Multiplatform 16-port Fujitsu KVM Switch PS/2, USB, Sun I/O, Sun USB

IP-KVM Fujitsu

1 User to 8 Computers Multiplatform Switch With ON SCREEN DISPLAY FEATURE
Fujitsu 8Port Multiplatform KVM Switch with Sun Keyboard user port and PS2 Keyboard and mouse user ports.



Output Ports to Computers:
8 x HD15 way Socket for Fujutsu D15 Servis single cable system adapting to chosen platform

User Ports
1 x 6 MCC Socket for PS/2 mouse (Green)
1 x 6 MCC Socket for PS/2 keyboard (Violet)
1 x 8 MCC Socket for SUN keyboard (Black)
1 x HD15 way Socket for monitor (Blue
