Unfortunately we do not stock the RX-NL-KMP2UPC NEW-Link MyPico Micro KVM CPU Switch with PS2 + USB Cables built in. ( PS2 USER ONLY ) NewLink-PS2/USB currently.

Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.

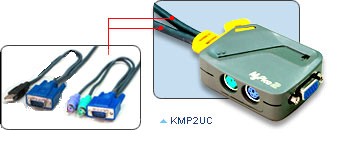

RX-NL-KMP2UPC NEW-Link MyPico Micro KVM CPU Switch with PS2 + USB Cables built in. ( PS2 USER ONLY ) NewLink-PS2/USB

NL-KMP2UC

Description:

PS/2 User to 1 x USB Computer and 1 x PS/2 Computer. Managing two computers of different interfaces has never been this easy! Ideal for PC and Mac, MyPico2-combo is the latest and the smallest 2-port KVM switch ever developed. Embedded with two high-quality mini-coaxial cables, this tiny KVM switch is your best companion while accessing two computers with USB and PS/2 interfaces. Connecting the two cables from the MyPico2-combo to the keyboard, mouse and monitor ports of your computers is all it takes! Once done, you get all the conveniences of controlling your computers with only one PS/2 keyboard, mouse and monitor. Its true plug-and-play design, ease-of-use and ultra reliability make it an excellent choice for users of all kinds. Supports 1 x PS/2 style computer and 1 x USB style computer for standard desktop computers only, PS/2 Standard Keyboard and Mouse User to connect directly.

Features:

Micro compact size design, with cables already mounted on to the switch

Hot-key functions allow easy computer access

Ideal for computers with USB or PS/2 interface

PS/2 or Mac keyboard mapping available

Hot Plug n' Play system configuration

High VGA resolution of up to 1920x1440

Supports Microsoft IntelliMouse Optical

Auto-scan automatically selects computer sequentially

Operating system independent, transparent to all applications

Keyboard states automatically saved and restored when switching computers

LED indication for easy status monitoring

Allows use of 1x Standard PS2 Computer and 1 x USB port only computer from a single PS2 Keyboard and Mouse

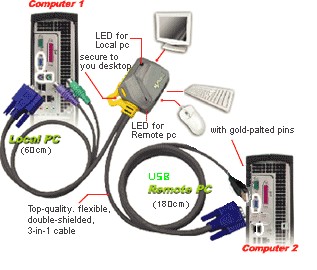

Newlink PCUSB setup

Specification:

1x PS/2 user. HD15, 6MCC & 6MCC sockets user port.

1 x 1.8metre cable built in with connectors of HD15,6MCC & 6MCC Plugs PS/2 computers only & 1 x 0.6 metre cable built in with HD15, USB ( A ) plugs for USB computers only -

Supports 1 x PS/2 style computer and 1 x USB style PC computer only for (standard desktop PC computers only) PS2 Keyboard and Mouse User to connect directly.
This is a basic switch made to work only with Desktop style PC computers only and for Users with standard PS/2 Keyboard and Mouse to be connected directly into the unit only.
Connecting 2 PC computers 1 x via PS2 connectors and 1 x via single USB connection both with std VGA Screens.
Not supported to work with wireless keyboard and mice or any extensions of any port or line.



Computer port number 2
Computer status LED Yellow x 2
Computer selection Hot-key commands
Emulation keyboard PS/2 (AT); USB
Emulation mouse PS/2, USB
Scan Interval 3, 8, 15, 30 sec.
VGA Resolution 1920x1440; DDC, DDC2, DDC2B
Cable length to computer 60cm(2ft) for PS/2 x 1
180cm(6ft) for USB x 1
Cable & connector Micro-coaxial, double-shielded cables
with PS/2 or USB connector
Computer connector Port1 KV/MS
Port2 KV/MS
Monitor
MiniDIN6 PS/2 male x 1
USB TYPE-A x 1
HDB15 male x 2
Console
connector Keyboard
Mouse
Monitor miniDIN6 PS/2 female x 1
miniDIN6 PS/2 female x 1
HDB15 female x 1
Power consumption Power-free operation, draws
negligible power from computers
Dimensions (mm) 62x49x21(mm)
Weight (w/o cable) 290g
