Unfortunately we do not stock the Part No. AKCS1262C Aten 2 Port DVI & PS2 KVM Switch with Multimedia ( Supplied with cables ) FREE UK DELIVERY ( Aten cs1262c )
* NOW DISCONTINUED
currently.


Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.

Part No. AKCS1262C Aten 2 Port DVI & PS2 KVM Switch with Multimedia ( Supplied with cables ) FREE UK DELIVERY ( Aten cs1262c )
* NOW DISCONTINUED

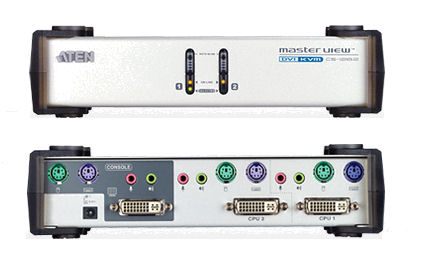

CS1262 Front and Rear view

Description:

2-Port PS/2 DVI KVM Switch DISCONTINUED AS OF 12/04/2012 * Please contact us for information on the most suitable alternative model Aten AKCS1262C 2 Port KVM Switch has a built-in DVI signal connector and can both digital and analog input. It has an audio signal connector and effectively enhances the application efficiency of KVM switch. AKCS1262 with KVM Cables

Features:


-One PS/2 console controls 2 DVI computers
-Fully compliant with DVI-Digital and DVI-Analog specifications
-With speaker and microphone support
-Independent switching of the KVM and Audio focus one computer can have the KVM focus while the other has the audio focus
-Computer selection via front panel pushbuttons and hotkeys
-Buzzer On/Off via hotkey
-Superior video resolution: 1920 x 1200; DDC2B
-Support MS Intellimouse(Pro), Explorer, and Optical PS/2 mice
-Auto Scan function to monitor computer operation
-OS Support:Windows 2000, Windows XP, Windows Vista, LINUX and FreeBSD

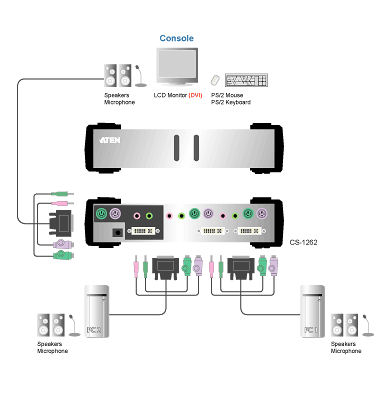

CS1262 setup

Specification:

Computer Connections 2
Port Selection Hotkey, Pushbutton
Connectors Console Ports:
Keyboard 1 x 6-pin Mini-DIN female (Purple)
Video 1 x DVI female (White)
Mouse 1 x 6-pin Mini-DIN female (Green)
Speaker 1 x Mini Stereo Jack Female (Green)
Microphone 1 x Mini Stereo Jack Female (Pink)
KVM Ports Keyboard 2 x 6-pin Mini-DIN female (Purple)
Video 2 x DVI-I female (White)
Mouse 2 x 6-pin Mini-DIN female (Green)
Speaker 2 x Mini Stereo Jack Female (Green)
Microphone 2 x Mini Stereo Jack Female (Pink)
Power 1 x DC Jack
Switches Port 2 x Pushbutton
LEDs On Line 2 (Orange)
Selected 2 (Green)
Emulation Keyboard/Mouse PS/2
Video 1920 x 1200; DDC2B
Scan Interval 1~99 seconds
Power Consumption DC5.3V, 1.78W
Environment Operating Temp. 0~50°C
Storage Temp. -20~60°C
Humidity 0~80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.70 kg
Dimensions ( L x W x H ) 21.00 x 8.50 x 5.50 cm

Package Contents:

1x DVI KVM Switch
2x KVM Cables
1x Power Adapter
1x User Manual
1x Quick Start Guide
