VSP-2DVI Rose DVI Video Splitter, 1 video input, 2 video output ( DVI Splitter )

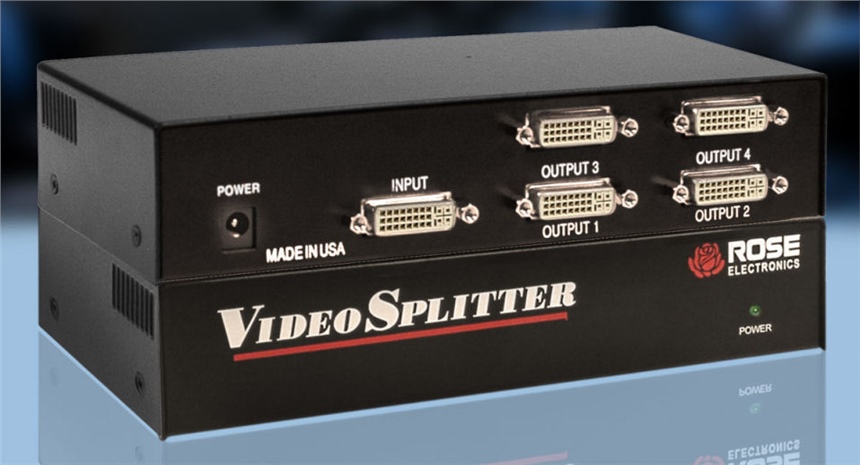

DVI Splitter 4port VERSION Shown as example.
other sizes available same style with more or less outlet ports
Description:
Video Splitter DVI is a flexible and specialized device that splits video from a single source to up to 8 different monitors with no degradation of video quality. It allows you to connect a single DVI-D or VGA video source to multiple DVI-D or VGA monitors using a DVI-I single-link video connector. High quality crystal clear resolutions up to 1920 x 1200 @ 60 Hz can be achieved on each display. All models have standard DVI-I connectors Installation The installation of the Video Splitter DVI is as easy as connecting your DVI video source to the DVI input connector, connecting your DVI video equipment to the DVI output connectors, and positioning the feature switch to PC or HDTV depending on the application. Connect the +5 VDC power adapter, turn everything on and its ready to use. No configuration is needed. Video Splitter DVI is offered in three models: 1x2 - The two-port model takes a single DVI video input and distributes it to two DVI outputs. 1x4 - The four-port model distributes the video signal to four DVI outputs. 1x8 - The eight port model distributes the video signal to eight DVI outputs.
Features:
Splits digital video from a single DVI video source to 8 digital outputs
Display output on digital displays, HDTVs, or video projectors
Video resolution up to 1920 x 1200
Supports digital and analog video
Units can be cascaded
1 x 2, 1 x 4, and 1 x 8 models available
Supports Single-link video
Standard DVI-I connectors
Supports digital or analog video
Video resolutions:
Up to 1920 x 1200 @ 60Hz
Easy to install, no configuration needed
Compliant with DVI 1.0 specifications
Video output #1 is used for the main display.
The other outputs follow output #1.
DDC information is obtained from the monitor
connected to output #1
No degradation of video quality using the
maximum DVI cable length of 32.8 feet.
Units can be cascaded to display the input image to additional monitors
- DVI video output #1 is used for the main display. The other outputs follow output #1.

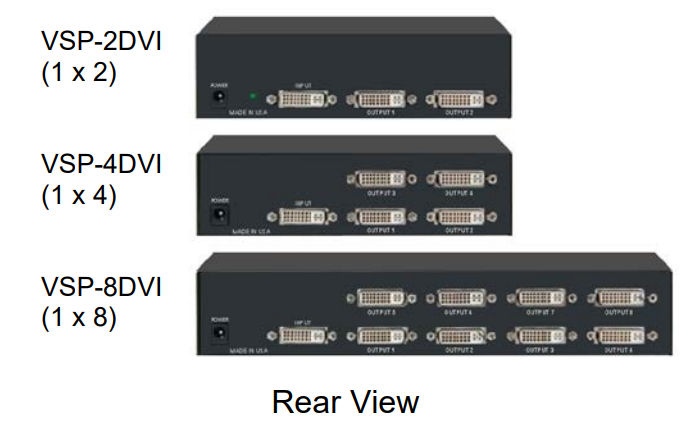

DVI Splitter rear views of different size units
Specification:
Dimensions
(W x D x H) 2/4-port: 7.93" x 3.75" x 1.75" (201 x 95 x 44.5 mm)
8-port: 9.87" x 5" x 1.75" (251 x 127 x 44.5 mm)
Weight 2/4-port: 1 lbs (0.5 kgs)
8-port: 2.4 lbs (1.1 kgs)
Power 100-240 VAC 50-60Hz
External adapter, +5V DC, 3A
2/4-port: 7.5W
8-port: 15W
Resolution DVI: 1920 x 1200
Distance Video: 25 feet (7.6m)
Connectors Video: DVI
Power: Barrel jack
Controls Unit power: Green Led
Environment Operating temperature: 32°F–122°F (0°C–50°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing
Max Resolution 1920 x 1200 @ 60 Hz
Connectors DVI IN – DVI-I (1)
DVI Out – DVI-I (2, 4, or 8)
Power 1 x 2 – 5 VDC / 1.5A
1 x 4 – 5 VDC / 1A
1 x 8 – 5 VDC / 3A
Power 100 – 240 VAC
Adapter ( UK )
Environment
Operating Temp. 32°F - 122°F (0°C - 50°C)
Storage Temp. 14°F - 158°F
Product Part Number Description
VSP-2DVI Video Splitter, 1 video input, 1 video output
VSP-4DVI Video Splitter, 1 video input, 4 video output
VSP-8DVI Video Splitter, 1 video input, 8 video output
Installation
The installation of the VideoSplitter DVI is as easy as connecting your DVI video source to the DVI input onnector connecting your DVI video equipment to the
DVI output connectors, connect the poweradapter, turn everything on and its ready to
use. No configuration is needed. If additional output monitors are needed, simply connect the output #1 connector on the main unit to the input connector on a secondary unit.
Special order products
These products can be used with compatible additional DVI extender products. See extenders
