Adder CCS-XB This module controls a set of LED lights which mount onto your screens. Add-on module for use with CCS4USB and Free-Flow

CCS-XB

Description:

The CCS-XB illumination module is an accessory which connects to the CCS4-USB. It gives the users the option to have an LED indicator positioned on each screen to indentify which screen you are currently controlling. The colour and intensity can be controlled for each screen. A maximum of 10 illumination indicators can be supported. Add-on module for use with CCS4USB and Free-Flow. This module controls a set of LED lights which mount onto your screens. The LED's are fully configurable allowing the user to assign a specified color and intensity via the setup application. These units provide loop through support for additional accessories such as the RC4 or RC8 remote control modules for greater flexibility. Each LED module is pre-wired with 3 metres of cable allowing the user to route the module discreatly to the screen. The flexible cable used is of oval profile making it easier to tuck into channeling, wall gaps or any similar room features.

Features:

Each LED is housed in a sturdy molded enclosure and provided with an adhesive pad allowing the module to be fixed onto a screen bezel or other surface as required.

The CCS-XB is interface powered making installation very simple.

Each CCS-XB ships with 4 LED modules. Additional modules can be ordered (to a maximum of 10 per unit) using order code: CCS-LED

Compatible with FREE FLOW and CCS4-USB KVM Switches

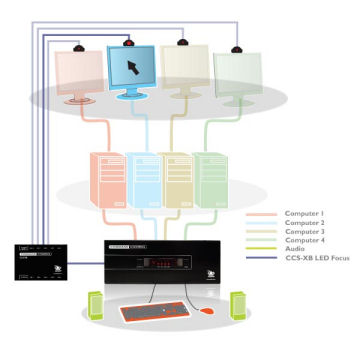

CCS-XB setup

Specification:

Hardware compatibility

For use with CCS4-USB devices with firmware 2.0 or above

Connection to CCS4:
10p10c connector via cable VSC46

Connections to Desk:
10 x 6P6C connecters for the CCS-LED modules
1 x 10P10C connector for upgrade cable or remote control RC4 4-button switch

Physical design
Robust metal construction. 95mm/3.7 (w), 30mm/1.2 (h), 65mm/2.6 (d), 0.22kg/1.65lbs.

Operating temperature
0 to 40C / 32 to 104F

Approvals
CE, FCC
