CS1792 - Aten - 2 Port USB 2.0 HDMI KVM / Desktop KVMP Switch with Audio ( Bundle supplied with cables and UK PSU )

/CS1792 pmce1023

Description:

With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio. Ideal for multimedia applications in the home or office, the CubiQ™ CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.

Features:

- 2-port HDMI USB 2.0 KVMP™ Switch
- One USB console controls two HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
Multiplatform support - Windows, Linux,and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable

* 1. PC keyboard combinations emulate Mac Keyboards
2. Mac keyboards only work with their own computers

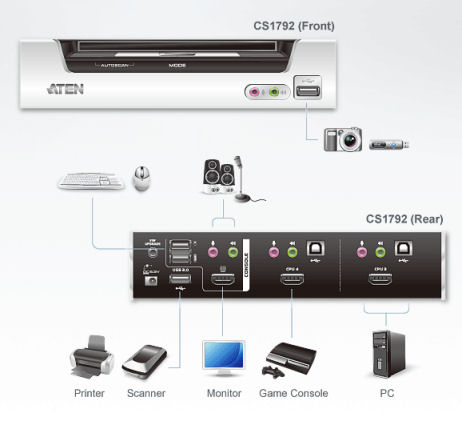

CS1792 Typical setup

Specification:

Package Contents:

1x CS1792 USB 2.0 HDMI KVMP™ Switch
2x Custom HDMI KVM Cable Sets
1x Firmware Upgrade Cable
1x Power Adapter
1x USB-to-PS/2 Converter
1x User Instructions


Computer Connections 2
Port Selection Front Panel Pushbuttons; Hotkeys
Connectors Console
Ports Keyboard 1 x USB Type A Female
(Black; rear panel)
Video 1 x HDMI Type A Female (Black)
Mouse 1 x USB Type A Female
(Black; rear panel)
Speaker 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear)
Mic. 2 x Mini Stereo Jack Female
(Pink; 1 x front, 1 x rear)
KVM
Ports Keyboard / Mouse 2 x USB Type B Female (White)
Video 2 x HDMI Type A Female (Black)
Speaker 2 x Mini Stereo Jack Female (Green)
Mic. 2 x Mini Stereo Jack Female (Pink)
F/W Upgrade 1 x 4-conductor 3.5mm Jack (Black)
Power 1 x DC Jack
USB 2.0 Hub 2 x USB Type A Female
(White; 1 x front panel; 1 x rear panel)
Switches Selected 3 x Pushbutton
LEDs Audio 3 (Green)
KVM 3 (Orange)
USB 3 (Green)
Emulation Keyboard/Mouse USB
Video 1080p (HDTV) / 1920 x 1200 (DVI)
Scan Interval 1-99 secs. (Default: 5 secs)
Power Consumption DC 5.3 V, 3.2 W
Environment Operating Temp. 0-50¢XC
Storage Temp. -20-60¢XC
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal, Plastic
Weight 0.42 kg
Dimensions
(L x W x H) 20.50 x 7.30 x 4.50 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
