RTL-5302052 Cable duct for VX IT – 42U H2200 RAL9005 42U Vertical cable management

/ Replaces RTL-5502145

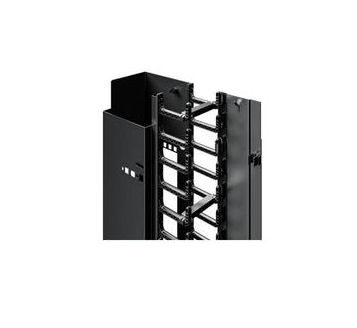

Cable Duct 42U

Description:

5302052 Cable duct for concealed cable routing. Convenient access to the cabling at any time via the hinged duct cover, optionally removable. The duct has cable entry options to the enclosure interior and through the rear panel of the duct. The cable retaining bars enclosed with the duct are snap-mounted onto the cable fingers of the duct with variable depth to support cable routing. Alternatively, the cable duct may also be screw-fastened. For optimum air routing, it may be combined with the brush kit for VX IT.

Features:

Simple assembly with tool-free quick-release fastening
High packing density due to U-based cable routing
Suitable for back-to-back baying
Cable duct may be used as a shielding element to prevent air short-circuits within cold aisle containment
Lockable cable glands, may be fitted with installation components on the 1 U mounting standard

Specification:

Material - Sheet steel
Plastic to UL 94-HB

Colour - RAL 9005

Supply includes :
Cable duct
2 covers
14 cable fingers , 6 U
10 cable retaining bars
Assembly parts

Units 42 U

To fit - Cannot be combined with 482.6 mm (19") mounting angles, dynamic, for VX IT

Note - With symmetrical interior installation in the VX IT enclosure type, may not be combined with dynamic 482.6 mm (19") mounting angles. For asymmetrical interior installation, assembly on one side is supported.


Dimensions:
Width: 109.5 mm
Depth: 314.5 mm
Length: 1,872 mm
To fit
Enclosure type: VX IT
Data Rack
TX CableNet
Width: = 800 mm
Height: = 2,000 mm
= 2,122 mm

Suitable for width
= 800 mm

Packs of
1 pc(s).
Net weight
9.2 kg
Gross weight
9.54 kg
PCF per pack (cradle-to-gate)
32.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177958586
ETIM 9
EC000012
ECLASS 8.0
27400703
Product description
Cable duct, 42 U, for concealed cable routing. For enclosure width 800 mm, for enclosure height VX IT 2000 mm
