IPL-005-IP1-0G-3C - iPower - Zero U 42x Outlet: 36xC13 and 6xC19 32A Neutric - 32 Amp IND 309, Vertical PDU Bar level Monitoring / Thermal Trip
IPL-005-IP1-0G-3C
Description:

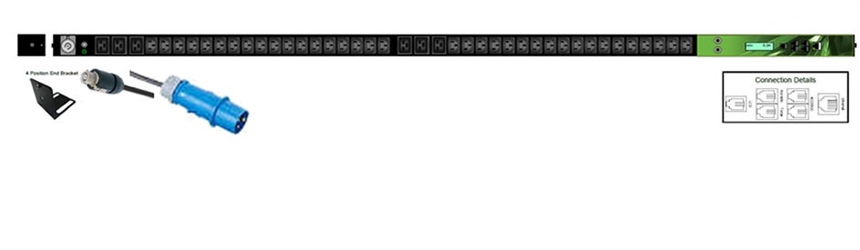

IPL Bar Level managed PDU, IPL Bar Level managed PDU Slim Vertical Zero U PDU 42 Outlet 36x C13 and 6x C19 Sockets. Provided with with 3 metre lead 3x4.0mm² HO7 Cable Neutrik 32Amp to IEC309 32Amp Commando Part Number IPL-PL32/3. Other Cable lengths and terminations are available. iPower - iPower LITE ( IPL) is a range of Bar Level monitoring PDU's perfect for the entry level data centre requirements of real time monitoring. Free downloadable software is available to download to manage your IPL data and run the SNMP agent. iPower - have a range of passive power solutions to meet any requirement that can be for seen in a large or small infrastructure power environment. All products are UK manufactured and we are so confident that a 5 year warranty is provided.
Features:
- 2 x 20Amp Thermal Trips
- Bar level real time Monitoring
- Zero U Vertical mount
- Neutrik 16Amp input connection
- Provided with with 3 metre lead 3x4.0mm² HO7 Cable Neutrik 32Amp
- IEC309 32Amp Commando Part Number IPL-PL32/3
Compatible DCM Software
Specification:
Physical
Body Dimensions: 44.5mm wide x 56mm deep x 1822mm o/a
Fixing Centres: 40U
Material: Mild Steel
Finish: Black powder coat
Fixing Method: End Brackets
Protection: Thermal Trip per 18C13 3C19
Indicator: Button on Trip
Earthing: M6 Earth stud to end
Rating: 32A @ 240v AC
Special Requirements: Bottom Entry
Inputs / Outputs
Input: Neutrik 32Amp Chassis Connector
Output: 36x C13 6x C19
Fuse Rating: 20Amp Thermal Trip
Compliance
Standards: Manufactured in accordance with BS EN 60950-1
WEEE: Compliant
RoHS: Compliant
CE: Compliant
Environmental
Max Op Temperature: -10° to +50°C
Estimated weight: 5.8kg
