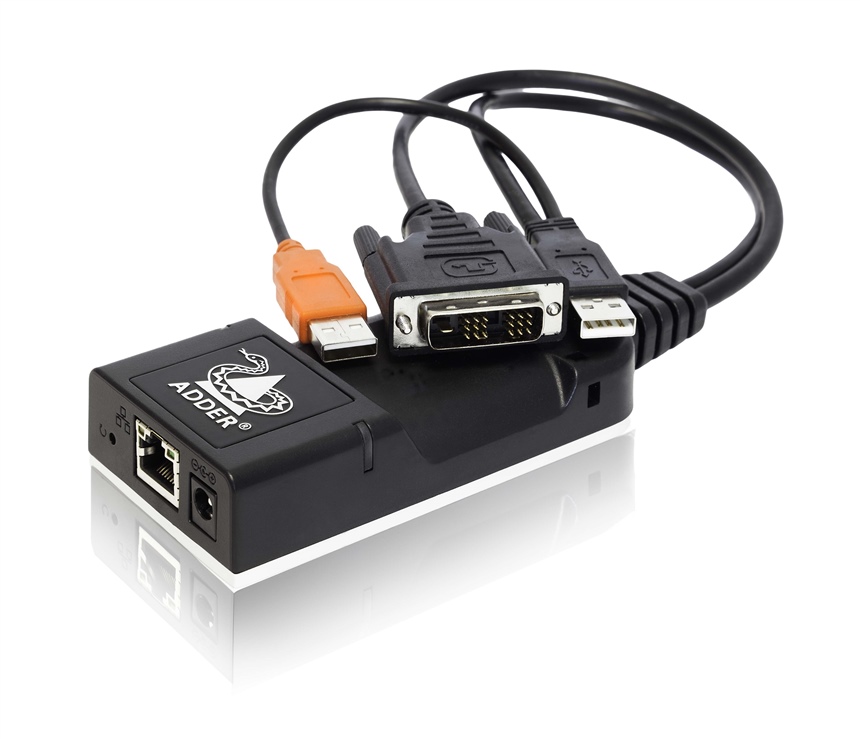

ALIF-100T-DVI ADDER - Link INFINITY 100T - Compact DVI KVM Transmitter only. Zero U form factor, IP-based, KVM extender/matrix for video, audio and USB (DVI Model) *NEW*

DVI - KVM Transmitter / Extender


The ADDERLink INFINITY 100T (ALIF100T) is a zero-U, high performance, IP-based KVM (Keyboard, Video, Mouse) transmitter that enables the use of standard IT infrastructure to extend computers away from the user environment. Product Includes: Zero-U form factor, IP-based: use your existing network, USB powered, Low power consumption, Supports multiple video resolutions, Easy retrofit into existing infrastructure, Plug and play,


Zero-U size: The ALIF100T takes zero-U of rack space in the server room allowing for ultimate flexibility and ease of installation

IP-based: Use your existing networking infrastructure to extend or matrix your computing resources to your users

USB powered: The device can be powered from USB. This means there is no need to provision for an external PSU. Options for powering from an external PSU or redundant PSU are also available

Low power consumption: Requiring less than 3 Watts, the unit can be powered from USB. This means it could use less than a quarter of the energy when compared to other solutions

Multiple video options: The system supports resolutions to a maximum of 1920x1200@60Hz through DVI interface

USB 2.0: Enables you to connect any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers

Seamless integration with the ADDERLink Infinity range: The ALIF100T can integrate seamlessly into your existing ADDERLink Infinity setup, replacing or working in conjunction with your existing ALIF endpoints

Perfect digital video: The ALIF100T uses an encoding system that is spatially-lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer ensuring the very best picture available and color accuracy

USB audio: The system delivers USB stereo audio (Line In, Line Out) digitally across the network

EDID management: The system has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed

Digital KVM matrix: By the addition of ADDERLink Infinity Management system (A.I.M.) you can turn multiple point to point extenders into a matrix system that allows any workstation to connect to any computer connected to the network. See the A.I.M. data sheet for details

Digital Visual Interface (DVI-D) MODEL:


Compact DVI KVM Transmitter only, for use with Infinity IP KVM System.

Operating/storage conditions

Operating temperature: 0 to 50OC
Storage temperature: -10 to 60OC
Storage and operating relative humidity: 10-90% non-condensing
Altitude: < 3000m
MTBF: >500,000 hours


USB power: 2 x USB2.0 (2x 500mA @5V) 5W
External power: 5VDC, 1A
Typical power consumption: 3W
BTU: 10.2BTU/hr


Dimensions: (L)110mm /4.3 x (W)55mm/2.17 x (D)25mm/1 with 30cm cable length
Weight: 0.2kg /0.4 lb
Materials: ABS and aluminium construction

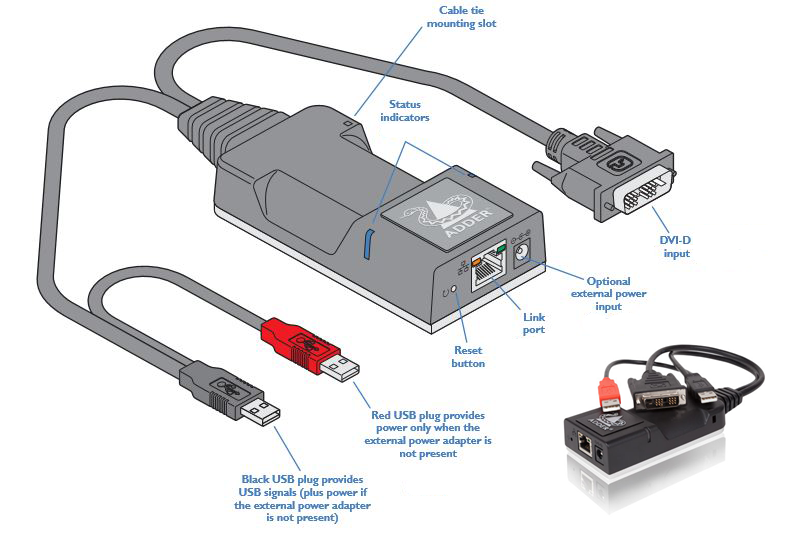

Computer: DVI-D, USB type A x 2
Ethernet: 1 x 8p8c (RJ45)
Power: 2.5mm socket


USB: USB2.0 full and low speed (No HS support)
USB features: Keyboard, mouse and touch
USB device seen as: 7 or 13 port hub
Max video resolution: Up to 1920x1200@60Hz
Audio: Line in/out USB audio 2 channel 16bit 48KHz
DisplayPort Audio: None
Ethernet: 1GbE (No 10/100 support)

Packing Box

Dimensions: (L) 292mm /11.5 inch (W) 245mm/9.6inch (D) 55mm/2.1inch
Weight: 0.5kg / 1.1lb

Approvals / Compliance

CE and FCC: See the compliance web page for the full list
Ethernet specifications rules apply 100 meters maximum run

Click here for further information

compatible products

Price:£ 525.00 + vat
