Unfortunately we do not stock the SmartAVI - MXWall-LT-S - HD Video Wall Solution, Video Wall Processor & Matrix Switch with 4-8 HDMI inputs and expandable outputs (up to 12) - DISCONTINUED currently.
Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.
SmartAVI - MXWall-LT-S - HD Video Wall Solution, Video Wall Processor & Matrix Switch with 4-8 HDMI inputs and expandable outputs (up to 12) - DISCONTINUED
AV Video Wall & AV Matrix
Description:

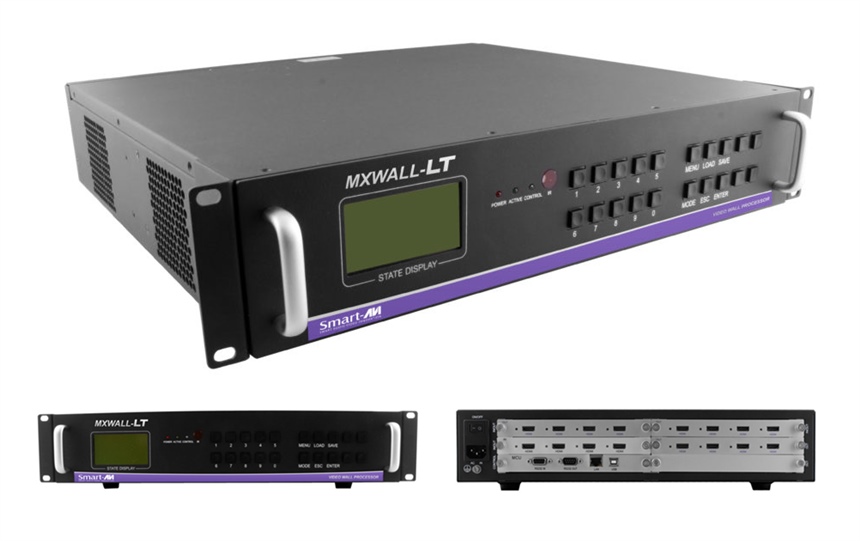

The MXWall-LT is a video wall processor and matrix switch with up to 12 HDMI outputs. Compact, plug-and-play, and excellent for mid-sized video wall displays between 4-12 screens with resolutions up to 1080p (1920Χ1080 @ 60Hz) Full HD. The MXWall-LT is simple to control, outfitted with easy front-panel buttons and optional RS-232 control. Better still, the MXWall-LT comes with SmartAVIs intuitive MXWall Manager software absolutely free! MXWall Manager software lets users manually create and adjust their ideal video wall displays using simple click-and-drag operation: its fun and great for users of any technical skill level! Users can choose from a number of great per-configured screen modes as well, displaying content in full video wall, four-screen quad, and individual screen modes with the press of a button. The MXWall-LT also features TCP/IP web control for LAN-connected units, so users can control the contents of the video wall from the comfort of a PC workstation. Its compact design and powerful processing power makes the MXWall-LT the perfect solution for any video wall installation. Plug-and-play, the LT is immediately ready for use as soon as it is connected to an AV set-up: no additional drivers or installers required. Better still, its exceptional hardware makes for stunning video wall displays in environments like retail spaces, educational facilities, conference rooms, command centers, event halls, entertainment venues, airports, and more!
Features:
Complete, Real-Time Hardware Solution
Plug-and-play ready
4-8 HDMI inputs
Up to 12 HDMI outputs
Output resolution up to 1080p (1920Χ1080 @ 60Hz)
Supports DVI with adaptors
Creative video wall modes
Easy control (front-panel buttons, software, TCP-IP and optional RS-232)
HDCP and HDMI 1.4 compliant
Includes user-friendly MXWall Manager Software: FREE!
Integrated scaler
For 4Χ4 to 4Χ12 video wall displays

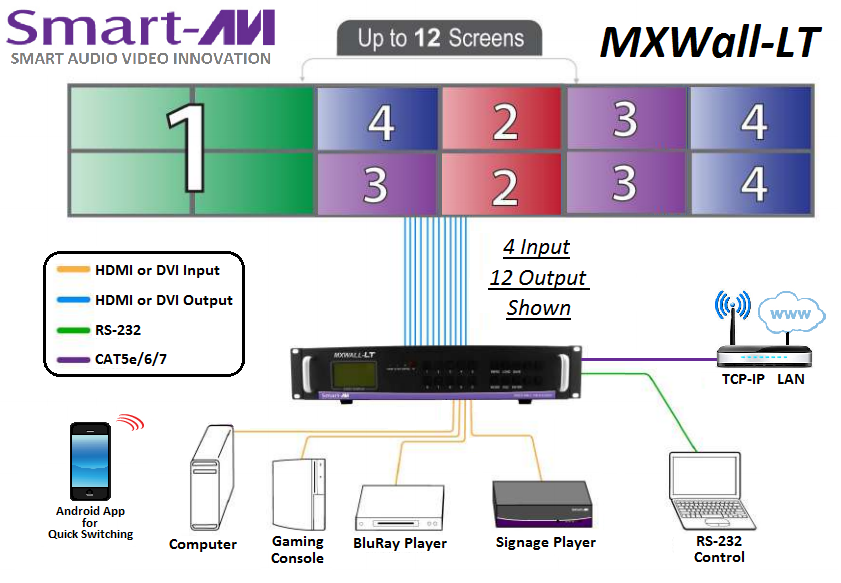

DIAGRAM
Specification:
INCLUDES:
- MXWall-LT [Part #: MXWALL-LT-S] Video Wall Processor and Matrix Switch (X1)
- Power Supply (X1)
- MXWall Manager software installation CD (X1)
- User Manual (X1)
Video
Video Amplifier Bandwidth - 3.2G
Input Video Signal - Video (TMDS) 0.5~1.0Vpp
Input DDC Signal - 5 volts
Compliances - HDMI 1.4 and HDCP compliant
Pixel Rates - Clock frequency beyond 165Mpix/second
Format 4:4:4 and 4:2:2 data input formats
Resolution - 480p, 720p, 1080i, 1080p
Input Card Format - 4-port HDMI card
Output Card Format - 4-port HDMI card
Input Slots - Up to 8 HDMI (2 cards)
Output Slots - Up to 12 HDMI (3 cards)
Video Type - RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits
Controls
Front-panel tactile switch buttons
RS-232 9600bps, Software flow DB9 Female
TCP/IP Telnet
Other
Working Temperature - 0°C~+55°C
Storage Humidity - 10%~90%
Weight - 20 lbs.
Dimensions - 17 in (W) x 3.5 in (H) x 15 in (D)
Power Supply - 50/60Hz, 100~230 VAC
Consumption - 300W
Applications
Airports
Malls
Command Centers
Entertainment Venues
Security Stations
Outdoor Displays
Restaurants
Financial Facilities
Convention Centers
Public Safety Hubs
