Unfortunately we do not stock the RSS-104C - Raritan - 4 Port Secure KVM Switch, USB smart card reader, NIAP 3.0 Certified, Raritan Secure Switch / Secure desktop KVM switch supporting analogue or digital video with CAC, AVC-SC ( High Security KVM Switch NIAPP PP 3.0 ) *DISCONTINUED* currently.


Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.

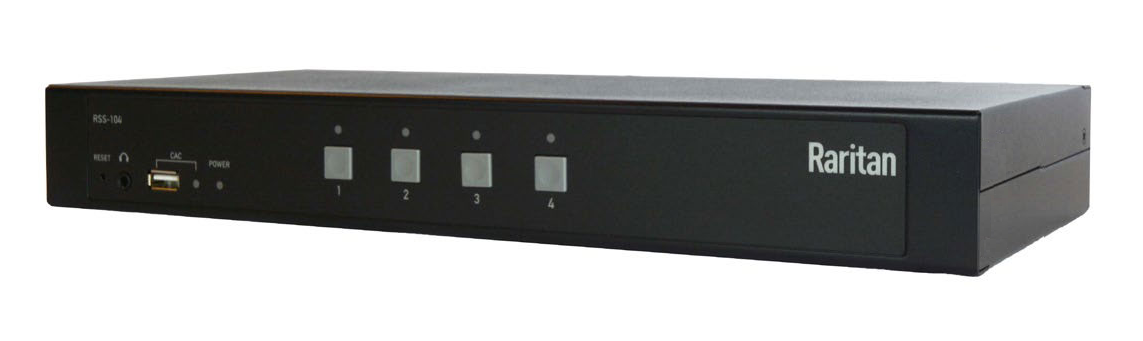

RSS-104C - Raritan - 4 Port Secure KVM Switch, USB smart card reader, NIAP 3.0 Certified, Raritan Secure Switch / Secure desktop KVM switch supporting analogue or digital video with CAC, AVC-SC ( High Security KVM Switch NIAPP PP 3.0 ) *DISCONTINUED*



Description:

Raritan Secure Switches (RSS) offer a proven desktop access solution for guarding against cyber intrusion for government and military agencies. The RSS is lab tested and certified to meet the requirements of the latest NIAP Protection Profile for Peripheral Sharing Devices version 3.0. There are four available models, two port and four port, with and without Common Access Card (CAC) authentication. These models support a single DVI-I (analog or digital) & USB user console with optional audio from the connected computer. The Raritan Secure Switches work in either analog (VGA) or digital video (DVI, HDMI) modes, including 4K Ultra HD, high definition, and standard resolutions. The NIAP Version 3.0 Protection Profile for Peripheral Sharing (KVM) Switches defines the latest requirements for use of Secure Desktop KVM Switches. These switches allow a user to safely switch between computer systems at different classifications. The new 3.0 Protection Profile (PP_PSS_V3.0) replaces the previous EAL2, EAL4 and Common Criteria regulations with stricter requirements. Secure NIAP Compliant KVM Desktop Access to Computers at Multiple Classification Levels

Features:

- Multi-level Physical and Logical Security Defenses
The RSS meets the 3.0 Protection Profile by strict isolation between computers at different classification levels, tamper resistant operation, firmware locked down to prevent unauthorized modification, and automatically clearing keyboard data

- Lab Tested for the NIAP Version 3.0
Certified to meet all the requirements of the 3.0 Protection Profile for Peripheral Sharing Switches, which defines strict and comprehensive protections for secure desktop access of systems at multiple classification levels along with the safe use of shared peripherals

- Secure USB Device Control
The RSS only connects authorized USB peripherals, without sharing or transferring data

- Works in Either Analog or Digital Modes
Supports VGA or DVI and HDMI video mode, including 1080P, single, dual-link DVI / 4K & Ultra HD


Further Features and benefits


• Complies to NIAP Protection Profile Version 3.0

• Isolation between computers at different classification levels

• Analogue (VGA) or digital (DVI/ HDMI) video mode

• High resolution video, including 4K Ultra HD#

• Tamper resistant features

• Intrusion detection to disable unauthorised operations

• Keyboard data is automatically cleared

• Limited USB connectivity to restrict USB devices

• Support for Common Access Card (CAC) / SmartCard authentication

• Built-in, internal power supply

DIAGRAM

Specification:

SPEC - 1 User, 4 Ports, NIAP PP3.0 certified, dual link DVI, support USB smart card reader, 3820x2160@30Hz maximum Video Resolution

• Dimension (L x W x H) - 152.4mm x 333.6mm x 44.5mm

• Weight - 5.02lb / 2276g

• Power - AC100 240V,1A;DC12V/0.4A (4.8W)

• Operating Temperature 0–40°C

• Storage Temperature -20–60°C

• Humidity 0–80% RH, Non-condensing

• Input Power 100–240VAC; 50/60Hz

• Video Resolutions DVI Dual Link: 2560x1600@60Hz; 3840x2160@30Hz

• DVI Single Link: 1920x1200@60Hz

• DVI-A: 2048x1536@60Hz

• Certifications NIAP Protection Profile ver.3.0;

• Safety: UL,CB ; EMC:FCC/CE/VCCI

• MTBF 100,000 hours

• Warranties 2 years standard

• Additional 3 years of extended protection is available

Click here for further information
