KVM-4THD/4K - Rose - Vista HDMI 4K, 4 Port KVM Switch, HDMI+USB2.0, 2K/4K KVM *NEW*

KVM-4THD/4K - Vista HDMI 4K KVM Switch

Description:

The Vista HDMI 4K is a 4-port HDMI KVM Switch with 4K Ultra-HD video support and USB 2.0 sharing. This dedicated multi platform KVM switch is capable of managing four computers through a single HDMI high-resolution monitor with USB keyboard and mouse control. Management of the switch can be controlled through the front panel push-buttons, via keyboard hotkeys, or RS-232 serial port commands.Considerable cost savings can be realised by consolidating the user control into a single monitor, keyboard and mouse workstation, with host USB 2.0 support and HDCP compliance.Upgrading to a 4K display monitor ? No problem, the Vista HDMI 4K will integrate directly with the latest 4K display monitors.

Features:

• Supports HDMI video resolutions up to 3840×2160@30Hz & 1080P - 4K Ultra-HD
• HDMI audio support, LPCM7.1, Dolby True HD, Dolby Digital Plus, and DTS-HD Master Audio
• HDCP 2.2 compliant
• Fully supports Windows, Mac, and Linux
• Supports USB2.0 devices and USB-HID keyboard/mouse
• Switchable stereo analog audio on all ports
• Access and control the switch via front panel push buttons, keyboard hot-keys or the serial RS-232 port
• Serial control interface via the DB9 serial port using the Rose RCS-4RS/D9 4-port remote control switch
• EDID learning and pass-through for all ports, enabling smooth and efficient video switching
• Independent switching and use of the KVM station and USB2.0 ports
• Complete keyboard/mouse emulation for error free booting of connected PC’s/servers
• Made in USA

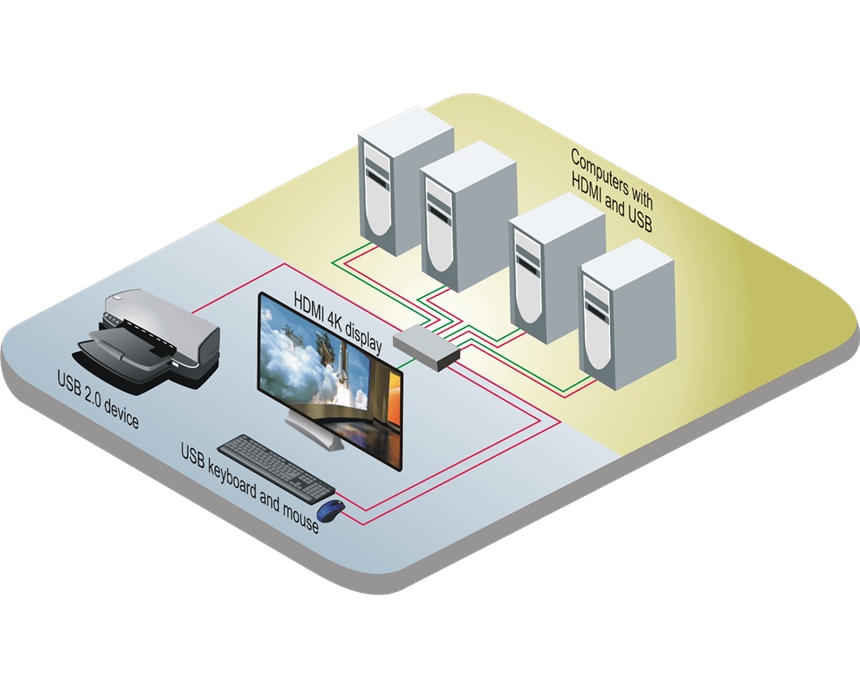

DIAGRAM


Specification:

Dimensions (W x D x H)

12.5" x 6.34" x 1.71" (317 x 161 x 43.4 mm) (1U)

Weight

3.5 lb (1.6 kg)

Power

100-240 VAC 50-60Hz
External adapter, +5V, 4A
20W

Resolution

HDMI: 1080p@60Hz
HDMI: 1080p @60Hz
HDMI 4K: 3840 x 2160 @30Hz
VGA: 2048 x 1536

Distance

CPU/KVM: 20 feet (6m)

Connectors

Video: HDMI female
USB 2.0 host: USB Type B
Keyboard: USB Type A
Mouse: USB Type A
USB 2.0 device: Two USB Type A
Audio: 1 x Stereo Audio 3.5mm per channel
Serial: DB9F serial port
Power: Barrel jack

Controls

Computer selection: Front panel (2x20 LCD) , hot-key, serial port or optionalTCP/IP

Environment

Operating temperature: 23°F–95°F (-5°C–35°C)
Storage temperature: -4°F–185°F (-20°C–85°C)
Relative humidity: 5%–90%, non-condensing
