AH-W119-1201E-EU/220VDC Austin Hughes 1U 19" Wide LCD Key Drawer, Num pad, TP Mouse, Single Console 12 Port DVI KVM
Description:
Austin Hughes AH-W119-1201E-EU/220VDC Austin Hughes 1U 19" Wide LCD Key Drwr, Num pad, TP Mouse, Single Console 12 Port DVI KVM The CyberView W119 rack console features a 19″ Widescreen LED-backlit LCD capable of 1440 x 900 video. Console Port Video input VGA console 6ft cable : CB-6A KB / MS HDMI console 6ft cable : CX-6B HDMI 1.4 + VGA Drawer end : DB-15 + USB type A x 2 Server end : DB-15 + USB type A x 2 USB interface Drawer end : HDMI + USB type A x 2 Server end : HDMI + USB type A x 2 The built in KVM Switch has 12 x DVI Ports for computer connection
Features:

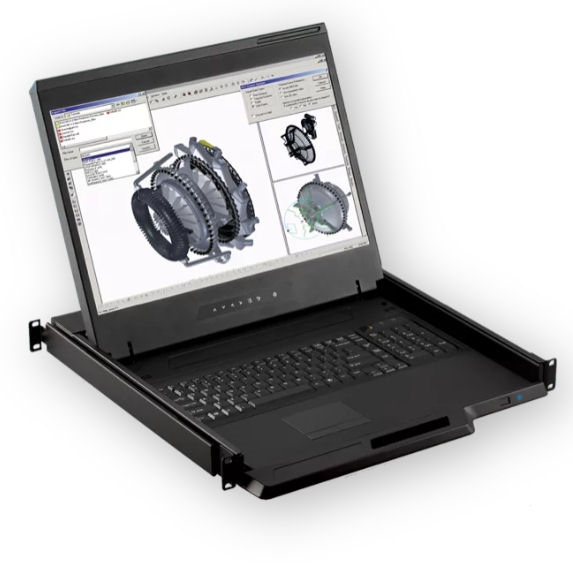

1U 19" Widescreen LED-backlit LCD console drawer
1440 x 900 native resolution / 16.7M colors
HDMI + VGA ( speakers excluded ) + USB K/B & MS
104-key keyboard with either touchpad or trackball
Short depth design of 460mm respectively
One Man installation design
Enhanced aesthetics with moulded front handle
2-year standard warranty ( upgradable up to 5 years

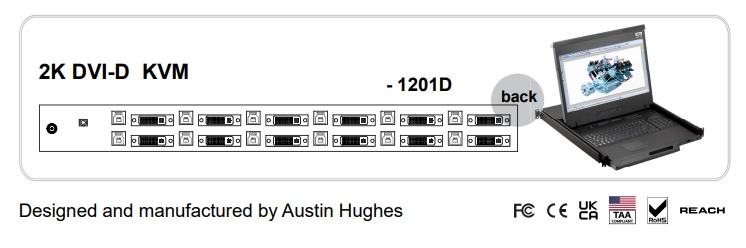

REAR W119-1201E
Specification:
Austin Hughes AH-W119-1201E-EU/220VDC Austin Hughes 1U 19" Wide LCD Key Drwr, Num pad, TP Mouse, Single Console 12 Port DVI KVM
SKU W119
Brand
CyberView
Categories
LCD Console Drawer, Rack Console Drawers, Rack KVM & Screen
Console Port
Video input
VGA console 6ft cable : CB-6A
KB / MS
HDMI console 6ft cable : CX-6B
HDMI 1.4 + VGA
Drawer end : DB-15 + USB type A x 2
Server end : DB-15 + USB type A x 2
USB interface
Drawer end : HDMI + USB type A x 2
Server end : HDMI + USB type A x 2
Form Factor
1U Rack Mount
Screen Size
19 Inch
Display Resolution
1440 x 900
Display Brightness
250 cd/mē
Mouse
Touchpad, Trackball
Features
Integrated KVM Switch Options,
Short Depth
MTBF
30,000 Hours
Dimensions:
Product
Console w/ KVM
442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch
Net
weight
11.5 kg / 25.3 lb
590 x 808 x 140 mm
Single console
Console w/ KVM 12.5 kg / 28 lb
Gross
weight
Single console 16 kg / 35.2 lb
Console w/ KVM 18.1 kg / 39.8 lb
23.2 x 31.8 x 5.5 inch
Console w/ KVM 442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch
* All dimensions stated are subject to change if options are selected / integrated to base model
Single console drawer as this unit
KVM Switch
KVM Port
Number of ports : 12
Connector : DVI-D connector
USB 3.0 connector ( combined for keyboard, mouse & audio )
Connectivity : Combo 4-in-1, KVM cable, 6 or 15 feet
Resolution : 16 : 9 - max. 2560 x 1440@60Hz
16 : 10 - max. 1920 x 1200@60Hz
4 : 3 - max. 1600 x 1200@60Hz
Resolution
Support ** :
16:10 - max. 1920 x 1200
16:9 - max. 1920 x 1080
4:3 - max. 1
