Unfortunately we do not stock the CN8600 - ATEN - 1-Local/Remote Share Access Single Port DVI KVM over IP Switch (1920 x 1200) with data encryption (CN Range) currently.
Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.

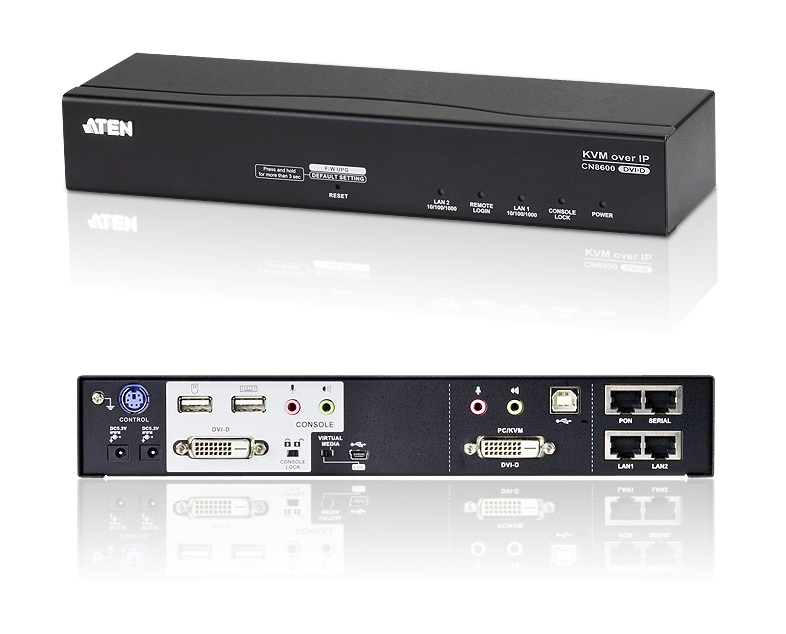

CN8600 - ATEN - 1-Local/Remote Share Access Single Port DVI KVM over IP Switch (1920 x 1200) with data encryption (CN Range)
IP KVM Switch (CN8600)
Description:
The CN8600 DVI KVM over IP is a cost efficient over-IP device, which allows remote access of digital video, and / or audio and virtual media via remote control of a PC or workstation. The CN8600 enables Over IP capability by connecting compatible ATEN DVI KVMand/orLCD console, such as the CS1768 (8-Port USB DVI KVM Switch) or CL6700 (DVI LCD Console). For user-friendly operation, a mini USB port on the rear panel is designed as a Laptop USB Console (LUC) port or a Virtual Media port. No additional monitor, keyboard or mouse is required locally for routine maintenance – simply use the LUC port to connect a laptop, and access any computer connected to the switch for easy on-site management. The CN8600’s Virtual Media function allows a user to perform diagnostic testing, file transfers, or apply OS / applications updates and patches from a remote console.
Features:
• High video resolution – up to 1920 x 1200 @ 60Hz RB for both local and remote consoles
• Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure user slogging in from browsers
• Virtual Media Support

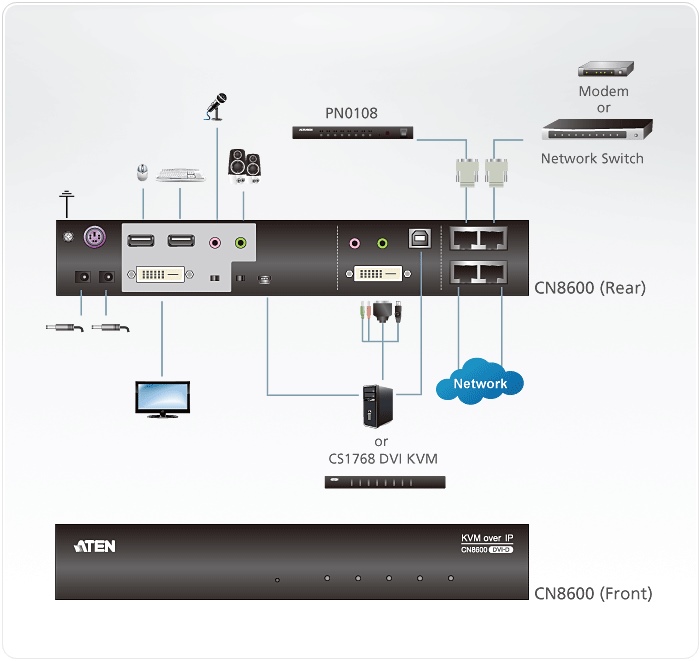

Diagram (CN8600)
Specification:
Package Contents:
1x CN8600 DVI KVM over IP
1x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x USB Cable (1.8 m/6 ft)
1x Power Adapter
1x Mounting Kit
1x User Instructions
Connectors:
Console Ports 2 x USB Type A Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports 1 x USB Type B Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
LAN Ports 2 x RJ-45 Female
Virtual Media 1 x USB Mini-B Female
Power 2 x DC Jack
PON 1 x RJ-45 Female
Serial 1 x RJ-45 Female
Control 1x PS/2 Female
Switches:
Reset 1 x Semi-recessed pushbutton (Black)
USB Function Selection 1 x Slide switch (Black)
Console Lock 1 x Slide switch (Black)
LEDs:
Console Status 1 (Green)
10/100/1000 Mbps 2 (Orange/ Orange+Green /Green)
Remote Login 1 (Green)
Power 1 (Green)
Emulation:
Keyboard / Mouse USB
Video:
Local console - 1920 x 1200 @ 60 Hz RB
Remote - 1920 x 1200 @ 60 Hz RB
Power Consumption DC5.3V:5.56W:30BTU
Environmental:
Operating Temperature 0 - 50˚C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties:
Housing Metal
Weight 0.88 kg ( 1.94 lb )
Dimensions (L x W x H) 26.00 x 7.64 x 4.20 cm
(10.24 x 3.01 x 1.65 in.)
Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
