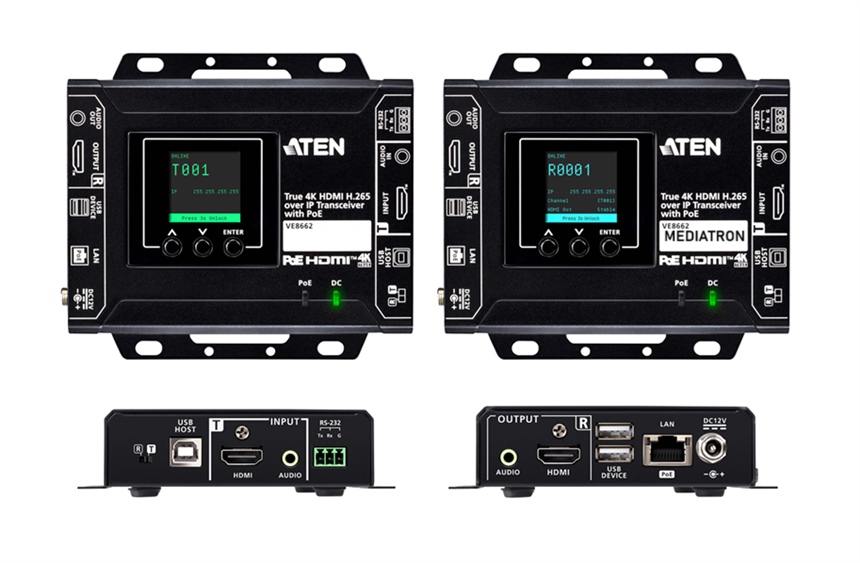

VE8662 - Aten - True 4K HDMI H.265 over IP Transceiver with PoE, AV Extender (Transmitter/Receiver) *NEW*
VE8662 - 4K HDMI AV Transceiver
Description:
The VE8662 True 4K HDMI H.265 over IP Transceiver with PoE sets a new standard for AV transmission, combining unparalleled efficiency with crystal-clear clarity. The transceiver, functioning as either a transmitter or receiver, enables flexible AV-over-IP expansion from a simple point-to-point setup to hundreds of endpoints. Powered by H.265 video compression, the VE8662 delivers ultra-clear True 4K visuals (4K60 4:4:4, HDCP 2.2) while requiring just 100 Mbps bandwidth, ensuring stable, low-latency streaming of video, audio, and control signals over standard networks. Quickly switch between multiple sources and displays with intuitive real-time control, offering instant visual feedback for both vertical and horizontal video walls. Designed for scalable AV setups, the VE8662 perfectly fits into the ATEN Networked AV solution, expanding coverage for various digital signage scenarios, including but not limited to sports venues, transportation hubs, and also control rooms where AV content can be efficiently shared and managed across workstations and video walls for real-time distribution.
Features:
V Advanced H.265 Compression with Low Latency
o Extends True 4K HDMI signals over IP with H.265 compression for low latency and improved bandwidth efficiency
o Delivers visually lossless high-quality video up to 3840 x 2160 @ 60 Hz (4:4:4)
o EDID Expert selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
o Supports HDR 10 with HDCP 2.3/2.2 compliant for content protection
o Supports individual stereo audio and HDMI audio format of PCM 2 channels
o Supports either PoE or DC-in; power redundancy when both are connected
Limitless Scalability and Flexibility
o Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via up to 100 meters (point to point)
o Offers multiple functions for applications such as extenders, splitters, video walls, and matrix switches
o Built-in 8KV/15KV ESD protection
o Rack-mountable
Collaboration with ATEN Control System
o Integrated solution compatible with ATEN Control System, allowing users to directly operate VE8662 via CLI Telnet, or RS-232 protocol
o Effortless operation one click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad
Note: VE8662 supports PoE and can be installed in combination with PoE network switches to reduce power cabling and additional power outlets. Before choosing the Network switch and installation, please refer to the Implementation Guide.
No Complicated IP Setup
o Simple configuration with no extensive IT experience or extra learning required
o Assign ID numbers for fast installation, no complex IP settings required
o Single DIP switch enables easy switching between transmitter / receiver, with 'T' or 'R' shown on the LCM and distinct backlighting for easy identification
o Effortless source switching via pushbuttons
Web GUI-Based Management, No Additional Server PCs or Software Required
o Drag-and-drop video sources, preview sources, and monitor displays via intuitive web GUI
o Contextualized web GUI with environmental pictures for intuitive control
o Fast switching enables real-time video streams and stable signal transmission
o User authority control for high-security applications
Video Wall Support
o Real-time video display with "What You See Is What You Get" functionality
o Supports horizontal and vertical display orientations (including 90° and 270° rotations)
o Push and Pull shares content instantly to / from a single Rx or video wall by just one click
Spontaneous Scheduling Management
o User-friendly scheduling management with minute-level event control
o Group VE8662 devices by receivers or video walls for content editing and playback
o Multiple profiles arranged to play in any order over a selected time period
Embedded / De-embedded Audio Support
o Separates audio signal can be embedded into the HDMI stream
o Audio stream can be extracted from the HDMI stream and delivered as a separate audio signal
o Supports Audio Matrix routes audio from selected transmitters to selected receivers, allowing flexible setup based on different unit requirements
Multiple Control Channels
o LCD screen top-panel LCD screen and pushbuttons allow for switching input, monitoring the ID & IP address and status of the extender
o Intuitive web GUI software independent, simple to operate it on any PC or Notebook
o USB Connectivity USB 2.0 ports allow for connection of devices such as keyboard, mouse and USB touch panels
o RS-232 Channel bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and barcode scanners
o Supports Telnet / CLI, and SSH for remote control, management, and authorized security bypass
o Remote KVM control hotkey switching (double-click the Ctrl key), OSD switching on the receiver, and boundless mouse switching
High-Security Protection
o Supports dynamic UDP media multicast ports
o AES-128 encryption for AV streaming in SRTP (Secure Real-time Transport Protocol)
o HTTPS for secure communication
o WSS for encrypted real-time data communication

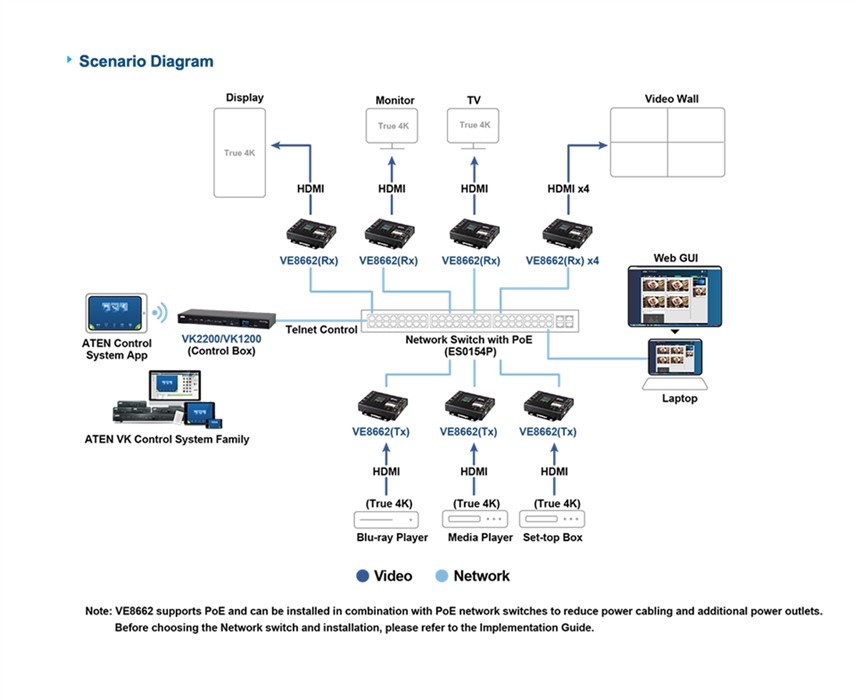

VE8662 - Application Diagram
Specification:
Video
Video Input
Max. Distance 5m
Impedance 100 Ω
Interfaces 1 x HDMI Type A Female (Black)
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5m
Video
Max. Data Rate Average: 20 ~ 25Mbps
Compliance HDMI
HDCP2.3 & HDCP2.2 Compatible
Max. Resolutions / Distance Up to True 4K@100m (Cat 5e/6, point to point)
*True 4K supported:
3840 x 2160 @ 60Hz (4:4:4) only
Video Compression H.265 Codec
Latency: 3~5 frames
Audio
Input 1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Output 1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Connectors
Unit To Unit 1 x RJ-45 Female ( with POE)
Power 1 x DC Jack (Black) with locking or
1 x RJ-45 (Power Over Ethernet, POE)
Control
RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
USB Channel 1 x USB Type B Female (Host)
2 x USB Type A Female (Device)
Pushbuttons
Operating Mode Selection 3 x Push buttons for LCM operation
Switches
Selection Mode 1 x Slide Switch - T (Be a Transmitter) / R (Be a Receiver) selection
LEDs
Power 1 x DC IN LED (Green)
1 x POE LED (Green)
Power Consumption DC12V:4.79W:22BTU/h (Tx)
DC12V:4.98W:45BTU/h (Rx)
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.51 kg ( 1.12 lb )
Dimensions (L x W x H) with bracket 14.02 x 12.30 x 3.00 cm
(5.52 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket 13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
Input Resolutions 3840 x 2160p 24 / 25 / 30 / 60 Hz 1080p 24 / 25 / 30 / 50 / 60 Hz
2560 x 1440 @ 30 / 60 Hz 1080i 50 / 60 Hz
1920 x 1200 @ 60 Hz 1024 x 768 @ 60 / 70 / 75 Hz
1920 x 1080 @ 24 / 25 / 30 / 50 / 60 Hz 800 x 600 @ 56 / 60 / 72 / 75 Hz
1680 x 1050 @ 60 Hz 720 x 480 @ 60 Hz
1600 x 1200 @ 60 Hz 720 x 400 @ 70 Hz
1440 x 900 @ 60 Hz 720p 50 / 60 Hz
1400 x 1050 @ 60 Hz 640 x 480 @ 60 / 67 / 72 / 75 Hz
1280 x 1024 @ 60 / 75 Hz 640 x 480 @ 60 Hz (4:3)
1280 x 800 @ 60 Hz 576p 50 Hz (4:3 / 16:9)
1280 x 720 @ 25 / 30 / 50 / 60 Hz 480p 60 Hz (4:3 / 16:9)
