IPT-700B-C13/36-N3L-3P PDU 3Phase 32Amp 36 x C13 sockets with 6 x 16A breakers BTO (IPT-1347B-3L)

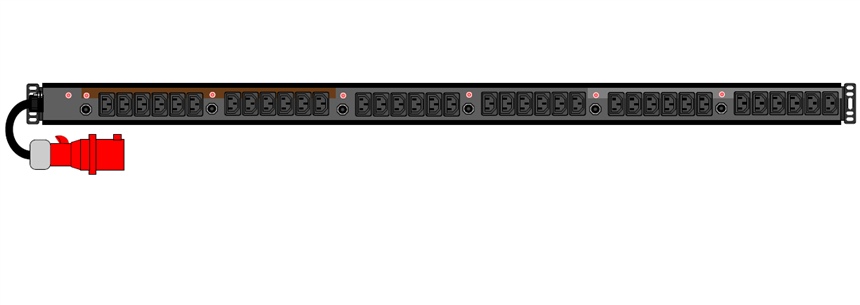

General bespoke guideline picture only , PDU-MCB
Actual units may look different style with a different ports array

Description:

Basic PDU 3 Phase 32Amp 24 x C13 sockets with 6x16A Thermal trips Breakers BTO / Made to order

Features:

UK MADE TO ORDER PDU.

3 Phase 32Amp Input

Outlets 24 x C13 sockets

with 6 x 16A (Thermal ) Breakers

3Phase

Made in UK to British standards

3 PHASE INPUT
asav-08/25

Specification:

IPT-700B-C13/36-N3L-3P

3 Phase 32Amp input Industrial RED

Outlets 24 x C13 sockets
with 6x16A breakers

Made in UK

Case Profile: 65mm wide x 55mm deep x 1430mm long. Approx
Case material: Extruded aluminium
Finish: Black body.
Input: 3m of 5x6mm H07RN-F cable to IEC309 32A 5 pin plug
Output: 36x IEC320 C13 (Type J)
Protection: 6x 16A thermal trips (1 trip per 6 sockets)
Rating: 32A @ 400V AC 50-60Hz

Earthing: 6mm External earth stud to end
Standards: Conforms to BS EN62368 1:2020+A11:2020
UK CA: Compliant
WEEE: Compliant
RoHS: Compliant
CE: Compliant
Operating Temperature: -10 - 60C subject to protection device fitted


BTO - BUILD TO ORDER
not cancellable not returnable items.
