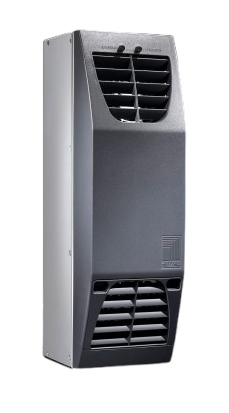

RTL-3201.200 Rittal Thermoelectric cooler, Total cooling/heating output 80/80 W (AIR COOLING UNIT) RTL-3201200

Rittal Thermoelectric cooler

Description:

The powerful, lightweight climate control units based on Peltier technology provide efficient cooling of command panels and small enclosures. Cooling/heating output 80/80 W.

Features:

Specification:

SK 3201.200
Product description
Powerful thermoelectric cooling units in a lightweight design for the climate control of command panels and small enclosures.
Material
Device: Aluminium, anodised
General colour
RAL 7015
Colour
Cover: RAL 7015
Supply includes
Thermoelectric climate control unit
Fully wired ready for connection (plug-in terminal strip)
Mounting accessories
Filter mat
USB cable A/B
Drilling template
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 80 W
Cooling output L35 L35/60 Hz: 80 W
Total cooling output L35 L30
Cooling output L35 L30/50 Hz : 100 W
Cooling output L35 L30/60 Hz : 100 W
Rated operating voltage
100 V - 240 V, 1~, 50 Hz/60 Hz
Rated current max.
1.9 A
Start-up current (LRA)
6.4 A
Air throughput (unimpeded air flow)
External circuit: 45 m³/h
Internal circuit: 45 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 0.8
Thermal output
80 W
Design
wall-mounted
Dimensions
Width: 125 mm
Height: 400 mm
Depth: 155 mm
Protection category to IEC 60 529
External circuit IP 34
Internal circuit IP 54
Power pack integrated
Yes
Type of electrical connection
Plug-in spring connection terminal
Temperature control
PID control (factory setting: cooling +35 °C / heating +5 °C)
Operating temperature range
-30 °C...55 °C
Cooling setting range
5 °C...55 °C
Heating setting range
-10 °C...20 °C
Pre-fuse
Miniature circuit-breaker/fuse: 4 A
Packs of
1 pc(s).
Net weight
4.05 kg
Gross weight
4.38 kg
Customs tariff number
84186900
EAN
4028177598614
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK Thermoelectric cooler, 80/80 W, 100-240 V, 1~, 50/60 Hz, WHD: 125 x 400 x 155 mm
