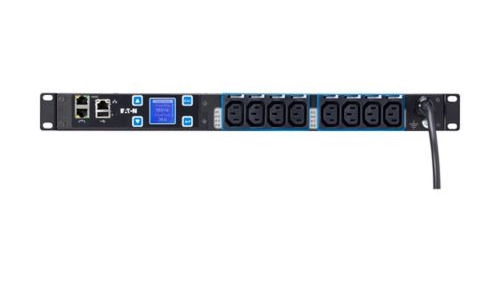

EMIH28 Eaton G3+ Metered Input rack PDU, 1U, Input C20, 3.7 kW max, 16A, 200-240V, Outlets 8XC13

EATON PDU EMIH28

Description:

Eaton G3+ Metered Input rack PDU, 1U, Input C20, 3.7 kW max, 16A, 200-240V, Outlets 8XC13

Features:

Phase Metering, Circuit Breaker Current Metering and Input Metering
Hot-Swap Control module with advanced LCD
Optional Temperature/Humidity sensor
Built-in IEC outlet eGrip retention, retains all standard IEC plugs
Built-in outlet P-lock system, locking mechanism with P-lock power cords
Daisy-Chain up to 8 PDUs, reduce network infratsructure costs
Power chain monitoring & Real time Intelligence on your Data Center, via Eaton Intelligent Power Manager
60°C Operating temperature
Colour-coded outlet and branch circuits for simple load balancing
Hydraulic–Magnetic Circuit Breakers with accidental trip protection

Input Cable Connection C20

Specification:

Product Name
Eaton Rack PDU G4
Catalog Number
EMIH28
Model Code
EPDU MI 1U (C20 16A 1P)C13X8
EAN
3553340696114
Product Length/Depth
203.2 mm
Product Height
444.5 mm
Product Width
42.9 mm
Product Weight
2.6 kg
Compliances
CE Marked
RoHS Compliant
EAC
Certifications
CE
IEC 60950-1
EN 55024:2010


Electrical input
Input connection
C20
Wattage
3.84 kW max
Amperage Rating
16A
Input voltage
200-240V
Phase
Single-phase
Frequency rating
50/60 Hz
Cord length
3m


Electrical output
Outlets
(8) C13
Number of Outputs C13
8
Number of outlets with earth pin
8


Type
Metered input Rack PDU

Ethernet interface
Yes
Serial interface
Yes
SNMP
Yes
Communication
HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS
Mass configuration
Yes
Additional specifications
Operating Temperature
0° to 60°C (32° to 140°F)
Material
Aluminium
Color
Black
