DKX3-EUST - Raritan - Dominion KX III Enhanced User Station HD (High performance Local IP-KVM) HDMI + Dual Video DisplayPort USB3.0 (Replacing the original DKX3-UST) *NEW*
DKX3-EUST
Description:
DKX3-EUST (Enhanced UST). The Dominion KX Enhanced User Stations are standalone appliances for high-performance IP access to servers connected to Dominion® KX III and KX IV switches. They can be accessed by DSAM, RDP, VNC, VMware virtual machines, web links, and SSH connections, together with optional CommandCenter integration. Their slim form allows them to sit on a desk, be mounted in a standard 19” rack, or VESA mounted on the back of a monitor. They are deployed using standard Cat5 cabling and Ethernet/IP technology. Simultaneously access, view, and control multiple servers spread across up to three monitors, with KX III Enhanced User Station, or four monitors, with the KX IV Enhanced User Station. Or use the innovative keyboard and mouse sharing feature to work across four, eight, twelve or more monitors! Use web-based and API-based remote control to expand the capability of User Stations to display walls and control rooms. There are two Dominion KX Enhanced User Station appliances. The Dominion KX III Enhanced User Station is recommended for use with the KX III, up to three monitors, and servers up to 1080p. The Dominion KX IV Enhanced User Station is recommended with the Dominion KX IV-101. Both provide video resolutions of up to 4K, a larger number of KVM sessions, and up to four monitors. The Dominion Enhanced User Stations can replace outdated analogue matrix switches, supplement inflexible broadcast systems, or be deployed anywhere hassle-free IP access is needed. They are perfect for broadcast labs, studios, control rooms, offices, and data centres.
Features:
HIGH PERFORMANCE KX III AND KX IV USER APPLIANCES
■ Stream multiple video sessions up to 4k resolutions and 60 FPS on the DKX4-EUST and 1080p video resolutions at 60
FPS on the DKX3-EUST.
■ Ultra-fast connections and sub-second switching
■ Supports VGA, DVI, HDMI, USB-C and DisplayPort video
■ Virtual media, USB audio, Smartcard
■ Multiple video/monitor support for two to six Dominion KX IV-101s
■ Supports 4K video, four monitors and more KVM sessions
PRODUCTIVE AND POWERFUL USER INTERFACE
■ Multiple simultaneous IP connections across maximum of 3 or 4 monitors
■ Mouse sharing feature supports multiple monitors
■ Scan servers and optionally save screenshots
■ Favorites and hot-key switching
■ Productive window management
■ Save and restore window layouts, even across multiple User Stations
■ Chinese, French, German and Japanese languages
FLEXIBLE IP SOLUTION — EASY TO DEPLOY
■ Flexible dual LAN or WAN access
■ Use corporate and/or separate LAN
■ Connects with Cat5 cabling
■ Access hundreds of servers and devices
■ PC/Laptop access also available
■ Desktop, rack and VESA mountable
■ Support for RDP, VNC, VMware virtual machines, web links, SSH and DSAM connections
■ CommandCenter for centralized login and access

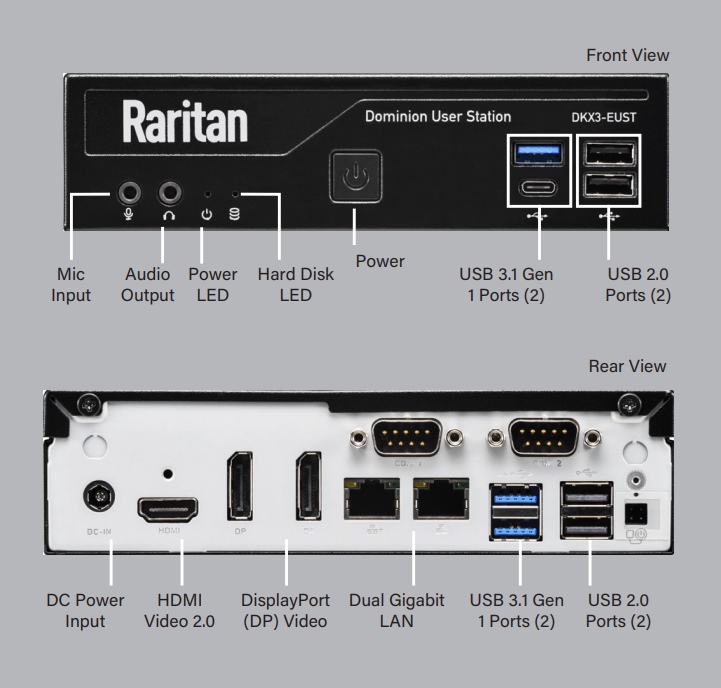

DKX3-EUST (Diagram) - Features
Specification:
CPU: Intel Core i3-13100 3.4GHz
Graphics: Intel HD Graphics
Video Outputs:
HDMI 2.0b, max resolution 4096×2160 @ 60Hz
DisplayPort 1.4a (DP++), max resolution 4096×2160 @ 60Hz
Multi-Display Support: Up to 3 displays (1x HDMI, 2x DP)
Memory: 8GB
Storage: 256GB SSD
Networking:
Dual LAN: 1x Intel i219 (1GbE), 1x Intel i225v (2.5GbE)
Front I/O:
2x USB 2.0
1x USB 3.0 Type-C
1x USB 3.1 Type-A
Power button with LED
Rear I/O:
1x HDMI 2.0b
2x DisplayPort 1.4a
2x USB 2.0
2x USB 3.1
2.5G RJ45 LAN
Audio: Headphone & Microphone jack
Power Supply:
Input: 100–240V, 1.8A, 50–60Hz
Output: 19V / 6.32A, 120W
Connector: 5.5/2.5mm, Level 6 Adapter
Certifications:
EMI: FCC, CE, VCCI, RCM, BSMI
Safety: cTUVus, CB, CCC, BSMI
Environmental:
Operating Temp: 0~40°C
Humidity: 10~85% RH
Altitude: 2000M
MTBF: 33,746 hours @ 60°C
Power Consumption: 90.96W (max)
Physical:
Dimensions: 190 × 165 × 43 mm (7.5" × 6.5" × 1.7")
Weight: 1.3 kg (2.9 lbs)
