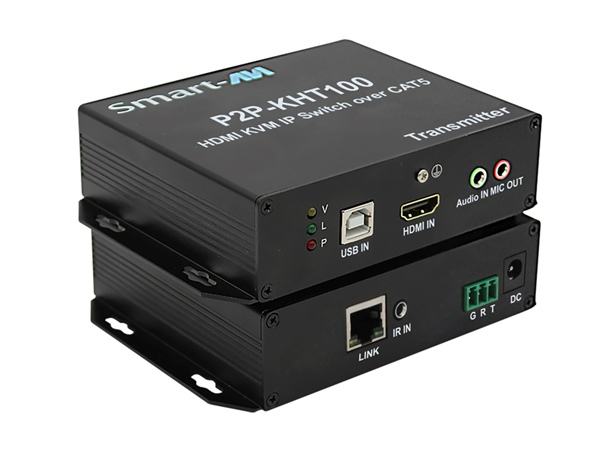

P2P-KHT100 - Single Head HDMI Transmitter via CATx
Description:
HDMI KVM-Over-IP Extender/Matrix Device – Single Head, CATx Extend, control, and manage your HDMI-based workstation over IP with the P2P-KHT100. Supporting flexible Direct, Matrix, and SaviGate modes, the P2P-KHT100 adapts to your installation needs — from simple point-to-point extensions to full multi-user managed environments — over CATx.
Features:
• SUPPORTS HDMI VIDEO UP TO 4K @ 30HZ OR 1080P @ 60HZ
• TRANSPARENT USB 2.0 EXTENSION FOR PERIPHERALS
• ANALOG AUDIO AND RS-232 PASSTHROUGH
• SELECTABLE DIRECT, MATRIX, AND SAVIGATE MODES VIA WEB INTERFACE
• SAVIGATE GATEWAY SUPPORT FOR CENTRALIZED MANAGEMENT (SOLD SEPARATELY)
• UP TO 100M OVER CATX
• ULTRA-LOW LATENCY JPEG2000 COMPRESSION
• PLUG-AND-PLAY INSTALLATION
• EDID LEARNING AND MANAGEMENT

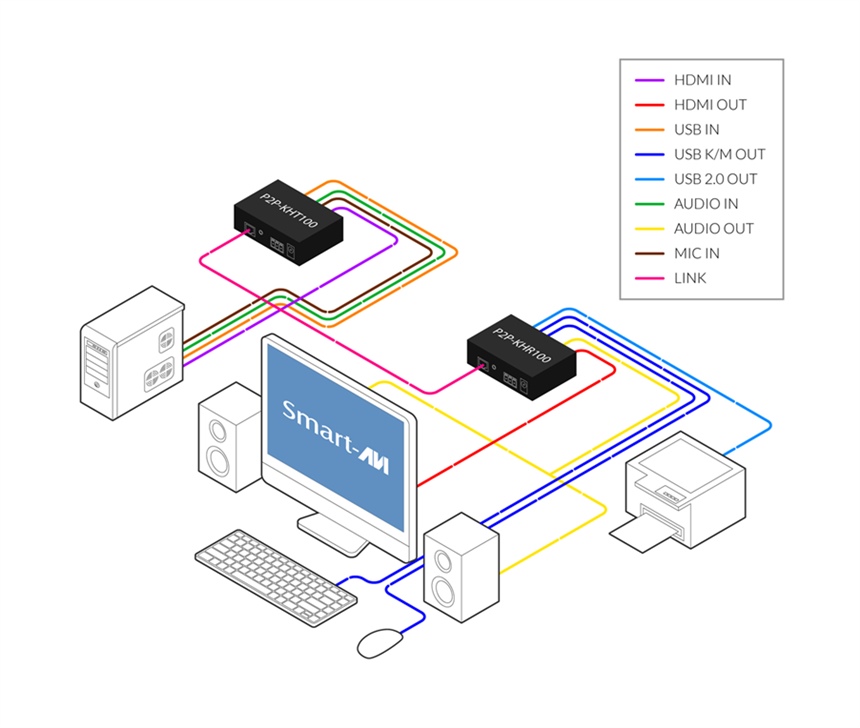

P2P-KHT100 Diagram
Specification:
Video (1) HDMI (female)
Max Resolution 1920 x 1080 @ 60 Hz
USB (1) USB Type B
Audio (2) Stereo 3.5 mm (female)
RS-232 DB9 (female)
Transmission RJ45
Control LEDs
Power 5V DC, 2A
Dimensions 5.2” W x 3.75” L x 1.5” H
