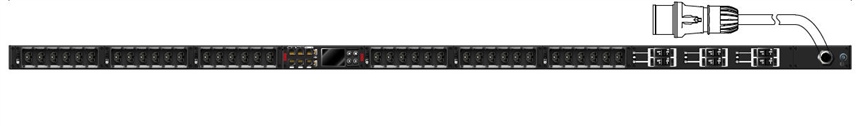

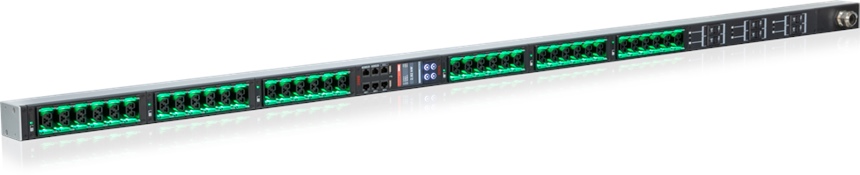

RNX-RN3574 RNX UPDU Module/Outlet Switched & Metered RNX 3P 32A - 36Port Combo PDU C13/C15/C19/C21
RNX Guidance Image*
Description:
The RN3574 Universal Power Distribution Unit is a versatile solution designed with a black background, featuring a fully modular construction assembled from the front for easy maintenance. It includes a robust inlet with 3x32A capacity and 2m cable, supporting up to 22kW via CEE32/5 6h connections. Outlets consist of 36 Combo C13/C15/C19/C21 ports, each individually switched with high-quality bistable 20A relays and metered for precise monitoring. The unit integrates 6 compact hydraulic-magnetic MCBs for safety, along with network capabilities including 2x Gbit (PoE) and 1x 100Mbit Ethernet ports for secure communication protocols such as https, snmp, ssh, syslog, and ntp. Additional features include 3 AUX ports for external sensors, 2 High-Speed USB Type A ports, and a 2.4” graphic TFT display for intuitive operation. It measures 1,796mm in length, weighs 8.3kg, and originates from Switzerland under HS code 8537.1000.
Features:
UPDU 3000 SERIES
- The Fully Modular Intelligent PDU
- Designed for future investment
- Flexible & Engineer Friendly
- 2 Year Warranty
Swiss Engineering
U-PDU – RN3000 SERIES
Multiple upgradeable outlet blocks….
Two PDU types in Horizontal & Vertical Solutions
Type 1: Module Metered & Module Outlet Metered
Type 2: Module Switched & Module Metered &
Switched
4 Building Blocks….
PIM – Power Inlet Module with LSZH Power Cable
CBM – Circuit Breaker Module
POM – Power Outlet Module
ICM – Interface Controller Module
RCM+ - for early detection of faulty equipment
RNX-RN3574
Specification:
[RN3574] UPDU Outlet Switched & Metered 3x32A 36 Combo C13/C15/C19/C21
black
Universal Power Distribution Unit
Fully modular, assembled from the front
Inlet: 3x32A, 22kW, 2m cable 6mm2, CEE32/5 6h
Outlets: 36x Combo C13/C15/C19/C21, black background
6 Modules with 6 Combo each, TwyLock compatible
Switched per Outlet (bistable 20A high quality relays)
Metered per Outlet
6x high quality compact hydraulic-magnetic MCBs 16A, 10kA Interrupting Capacity
2x Gbit (PoE) and 1x 100Mbit Ethernet (https, snmp, ssh, syslog, ntp, etc.)
3x AUX Ports for external Sensors
2x High-Speed USB Ports (Type A)
2.4” graphic full-color TFT display (auto-orienting)
Incl. 2 mounting buttons for tool-less mounting

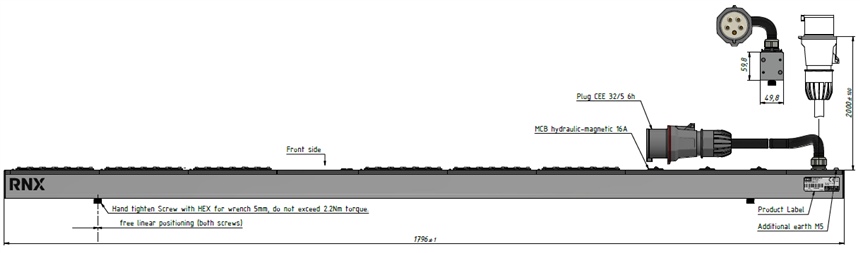

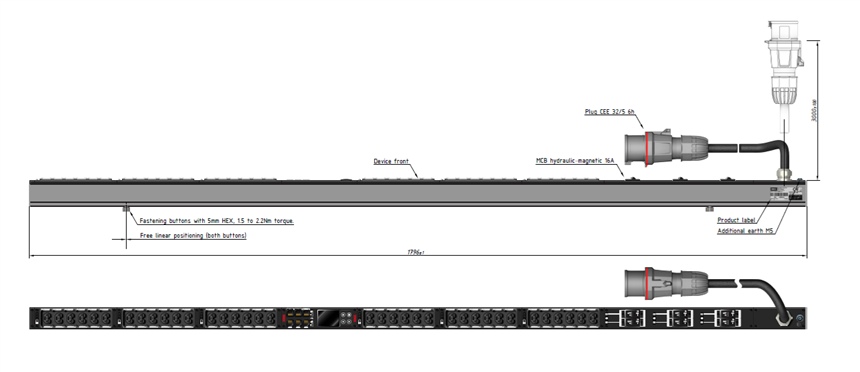

Length 1'796mm
Weight 8.3000kg, Volume 0.045045m
Origin Switzerland, HS code 8537.1000
