ALIF102T-HM - ADDERLink INFINITY 102T - HDMI IP KVM, High performance ZeroU IP KVM dongle for extension or matrix of video, audio and USB over a single cable. (HDMI) *NEW*

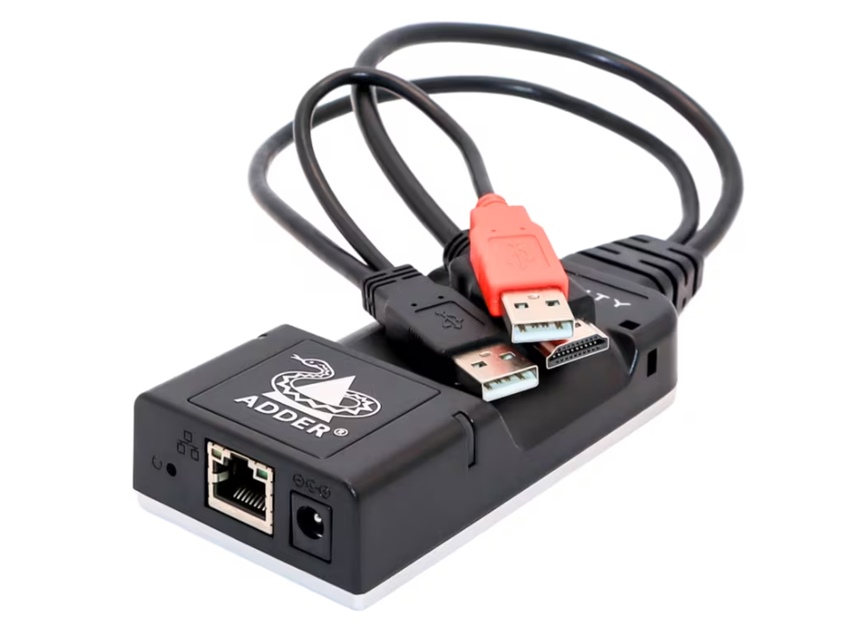

ALIF102T-HM (HDMI High performance ZeroU IP KVM)
Description:
ADDERLink® INFINITY 102T (ALIF102T) is an IP KVM extender delivering video, audio and USB over a single cable in a ZeroU form factor. Part of the ADDERLink INFINITY range, the ALIF102T enables the use of standard IT infrastructure to extend computers away from the user environment.
Features:
ZeroU Form Factor
The ADDERLink INFINITY 102T (ALIF102T) takes ZeroU of rack space in the server room allowing for ultimate flexibility and ease of installation.
Perfect Digital Video, Real-Time Control
Using a spatially lossless encoding system, with 1:1 pixel mapping, the ALIF102T provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.
USB 2.0 with Class Control
Supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For secure applications, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.
Support for Dithered Video
Allows analog or noisy video to pass through the system, along with computers, that dither the video to enhance the perceptive image quality. Some Mac computers use this technique.
Flexible and Scalable Extender or Switch
Each ALIF102T model can be configured as part of a simple extender or self-managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.
ADDERLink® INFINITY Matrix
With the addition of the ADDERLink® INFINITY Management (AIM) system, you can turn multiple point-to-point extenders into a scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.
Digital Audio
The system can deliver USB stereo audio (bi-directional) or embedded video standard stereo audio (uni- directional).
USB Powered
Using under 3 Watts, the device can be powered from USB. This means there is no need to provision for an external PSU. Options for powering from an external PSU or redundant PSU are available.
EDID Management
Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.
Plug and Play
ADDERLink INFINITY devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
Specification:
HDMI Transmitter (ALIF102T-HM) Specification
Video Information (For 1 Screen)
Maximum Resolution 2560 x 1600
Frame Rate 60
Colour Depth 8 bpc
Computer Connections
USB A 2× 2.0 True Emulation, Full Speed, Low Speed, High Speed
HDMI® 1
Link Ports
8p8c (RJ45) 1×
Audio Connections
Audio Type Digital
Channels 2
Audio In Ports 1× USB
Audio Direction Bi-directional
Size (bit) 16
Speed (kHz) 48
Additional Information HDMI Audio 2 channel linear PCM
Cable Requirements
Recommended Cable Type CAT5e and above
Maximum Cable Length 100m / 328ft
Network Support
Bandwidth 1GbE
10/100 Support No
Environmental
Operating Temperature 0 to 40 °C / 32 to 104 °F
Storage Temperature 0 to 40 °C / 32 to 104 °F
Operating Humidity (%) 10% - 90% (non-condensing)
Storage Humidity (%) 10% - 90% (non-condensing)
Altitude 2000m / 6562ft
Mean Time Between Failure (MTBF) 1,200,000 h
MTBF Standard Telcordia SR332 Issue 4 March 2016 Calculated @ 55C
Power Source
USB powered 2×
5V 1×
Power Additional Information USB power: 2x USB2.0 (2x 500mA @5V) 5W• External power: 5VDC, 1A, (LPS)
Power Consumption
Maximum Power (Watts) 5
Typical Power (Watts) 3
Physical Design
Construction Material ABS and aluminium construction
U size 0
Width 55mm / 2.2in
Height 25mm / 1in
Depth 110mm / 4.30in
Flying Lead Length 300mm
Weight 0.2kg / 0.4lb
Compatibility
OS Compatibility All known operating systems
System Requirements Does not support HDCP or CEC control
Approvals and Standards
Approvals CE, FCC, ICES, UKCA
Standards ANSI 63.4, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B
Other Cal Prop 65, China ROHS, EU REACH, UK REACH
Packing Box
Length 292mm / 11.5in
Width 245mm / 9.6in
Depth 55mm / 2.2in
Weight 0.5kg / 1.1lb
Ordering Information
Code Description
ALIF102T-HM ALIF102T- HDMI Transmitter
What's in the Box?
1× ALIF102T unit
1× Quick start guide
