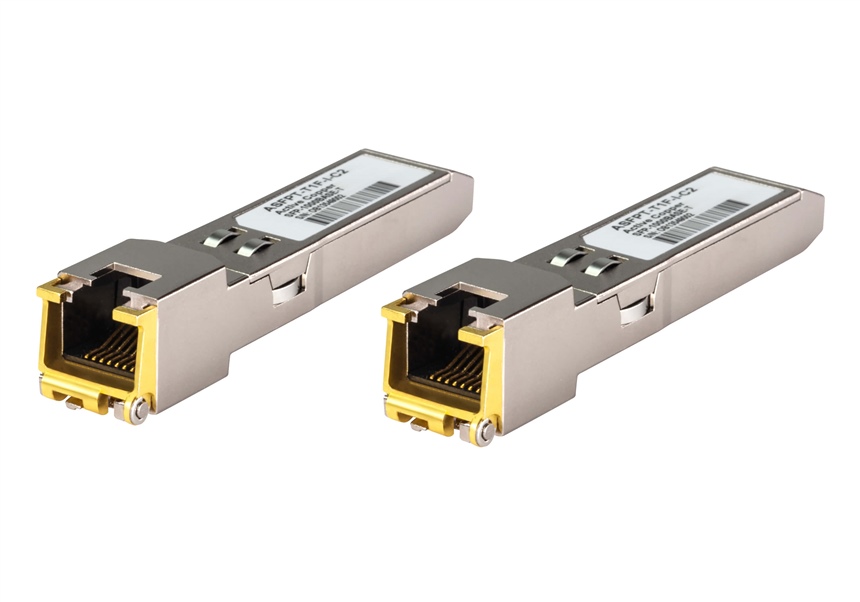

2A-143G - ATEN - 1Gb Ethernet Copper SFP Transceiver *NEW*
2A-143G SFP Transceiver
Description:
The 2A-143G 1Gb Ethernet Copper SFP Transceiver is designed for 1 Gigabit Ethernet environments, enabling standard Cat 5e/6/6a UTP copper cable connections through a network switch’s SFP port. Supporting transmission distances of up to 100 meters, the 2A-143G features a hot-pluggable form factor with a standard RJ-45 interface for flexible deployment in copper-based infrastructures. Compliant with IEEE 802.3ab specifications, it is a cost-effective, high-performance solution for extending Ethernet connectivity in environments where fiber is unavailable or unnecessary. It’s ideal for office environments or IT deployments that rely on existing copper infrastructure.
Features:
• Provides 1GbE connectivity up to 100 meters over Cat 5e/6/6a (UTP)
• Compliant with IEEE 802.3ab specifications
• Enables network redundancy in all-copper architectures
• Hot pluggable for quick and easy installation
• Low power consumption under 1W
• Operation temperature from -40° C to 85° C
• RoHS compliant
Specification:
Package Contents:
2 x 1Gb Ethernet copper SFP transceiver
Ethernet Copper SFP
Form Factor SFP
Max. Data Rate 1000Mbps
Connector Type RJ-45
Media Cat 5e/6/6a (UTP)
Max. Cable Distance 100 m
Protocols Compliant with IEEE 802.3ab specifications
Environmental
Operating Temperature -40°C ~ 85°C
Storage Temperature -45°C ~ 90°C
Physical Properties
Weight 0.02 kg ( 0.04 lb )
Dimensions (L x W x H) 6.85 x 1.20 x 1.38 cm
(2.7 x 0.47 x 0.54 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
