CRK-1DTXT1HM-HD6/A2 Rose HD6, Single Head HDMI KVM Extender,1xHDMI,1xUSB2.0,CAT5e, 100m with AUDIO

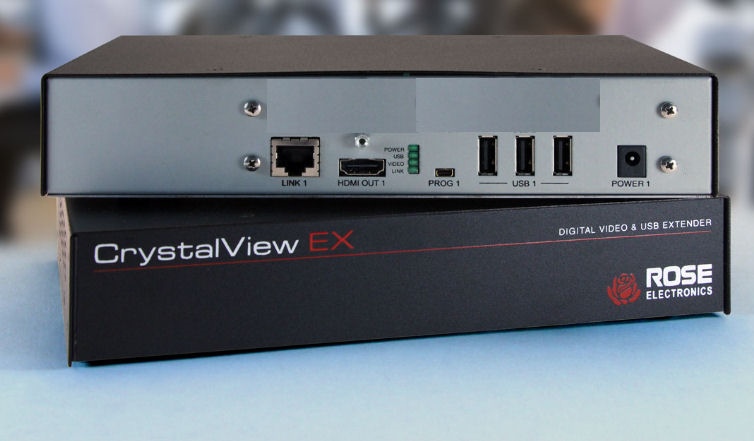

CRK EX-HDMI-1V edited picture to show only 1x video port.
Actual unit may vary from image
Description:
Single video version CrystalView EX HDMI extender supports HDMI graphic interfaces in an uncompressed video format with a resolution up to 3840 x 2160. This full speed uncompressed video data transfer format prevents picture corruption and frame drops. The extender will maintain a smooth and clear picture even when displaying video in the highest resolution up to a distance of 330 feet (100m) over a CATx cable.It also extends USB keyboard and mouse signals. Using enhanced USB emulation, a wide range of USB HID and USB 2.0 devices are supported. 3 USB ports are available on the receiver unit, with the capacity to expand the number of ports to 30 by using USB hubs. Each USB port has 500 ma of power for USB devices requiring higher power to operate.CrystalView EX HDMI is available in single dual, triple, or quad-head models. The USB is transmitted together with the first video signal. Each video output requires a separate CATx cable.A Quad-Rack version of this product is available that includes two, three or four independent CrystalView (HDMI+USB) extenders within a single 1U 19" rackmount chassis.
Features:
Extends up to four HDMI video signals and USB 2.0 up to 330' (100m)
Uncompressed video resolution up to 3840 x 2160
Three remote high speed USB 2.0 device ports supplying 500ma power
USB 2.0 throughput of up to 40 Mbps
Supports audio via USB or optional dedicated channel
Use USB keyboards, mice, printers, scanners, flash drives, audio devices, touch screens, game controllers, and many more USB devices
AVAILABLE WITH ADDED
- Bi-directional audio
- Bi-directional audio & serial
extra code versions required

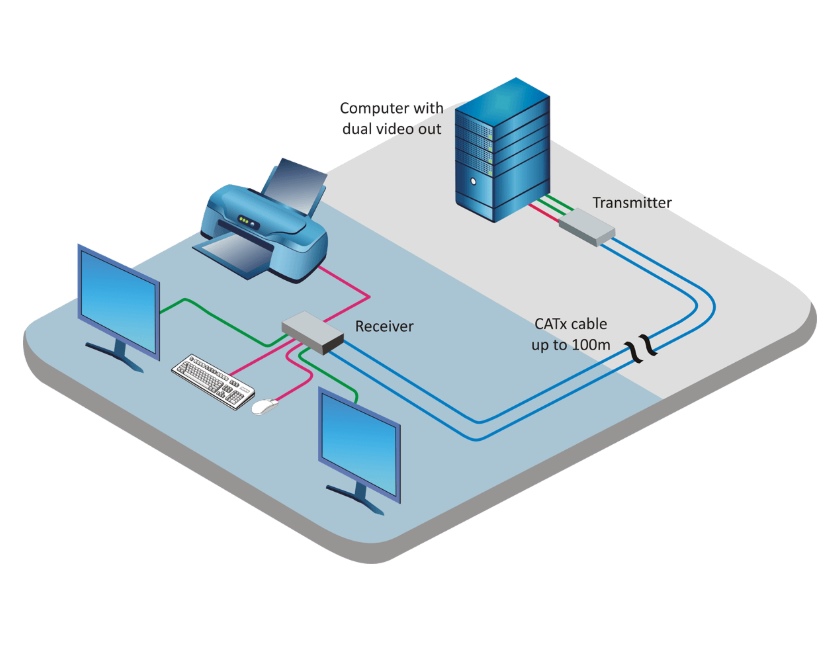

CRK-EX-HDMI-DUAL VIDEO SETUP. GENAERLA PICTURE GUDE.
Actual unit is for single video only
Specification:
Dimensions
(W x D x H)
Mini Chassis: 9" x 5.7" x 1.73" (228 x 144 x 44 mm) (1U)
B Chassis: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) (1U)
Weight
Mini Chassis: 4.4 lb (2 kg)
B Chassis: 6 lb (2.7 kg)
Power
100-240 VAC 50-60Hz
External adapter, +5V, 4A-9A, grounded
Dual: 15W
Triple: 30W
Quad: 45W
Resolution
HDMI: uncompressed 1080p, 1920x1200, 4K 30, 2D/3D depth, 36 bit color
Deep color, x.v.color
USB2.0 speed
Up to 40Mbps
Distance
HDMI/USB2.0: 330' (100m)
Connectors
Multi-Head Version:
Transmitter:
HDMI video: HDMI female, one per port
USB host: USB Type B
Link: RJ45 jack, one per port
Power: Barrel jack
Receiver:
HDMI video: HDMI female, one per port
USB device: Three USB Type A, 500ma each
Link: RJ45 jack
Power: Barrel jack
Quad-Rack Version:
Transmitter:
HDMI video:HDMI female, one per port
USB host: USB Type B, one per port
Link: RJ45 jack, one per port
Power: Barrel jack
Receiver:
HDMI video: HDMI female, one per port
USB device: Three USB Type A, 500ma on each port
Link: RJ45 jack
Power: Barrel jack
Controls
Unit power: Green LED per port
Link active: Green LED per port
Video active: Green LED per port
USB status: Green LED per port
Environment
Operating temperature: 32°F–104°F (0°C–40°C)
Storage temperature: -4°F–158°F (-20°C–70°C)
Relative humidity: 20%–80%, non-condensing
