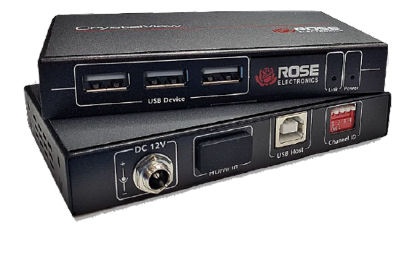

RE-CRK-1DTXUH1/4K Rose EC, 1 Video HDMI KVM Extender, with USB CATx, 4K30Hz
CRK-1DTXUH1-4K
Description:
The CrystalView EC extender is the ideal product for Plug and Play applications using HDMI, embedded audio and USB devices. Use a single point-to-point CATx cable or connect to an IP based Gigabit network to get unlimited possibilities for the deployment of host resources and the location of user consoles. 4K UHD & Zero Latency - Extend high quality 4K@30Hz HDMI video over a single CATx cable up to 390ft/120m with no video loss or time delay. Ideal for KVM Applications You can remotely control a host PC or a gaming console with up to three USB 2.0 peripherals. Operate the host device using keyboard, mouse, gaming console, or a USB touchscreen Multi-User Control of Remote Systems Up to 16 sets of the CrystalView EC can work together via a standard Gigabit ethernet switch without VLAN settings. Multiple operators can have concurrent access to their respective remote computer/server from their local console. DVI-D extension For DVI-to-DVI extension, use an HDMI/DVI bidirectional cable at each end.
Features:
►Transmits an HDMI 1.4b Signal with zero latency up to 390ft (120m) over a single CAT5e/6/7 cable
► Supports up to HDMI 4K@30Hz video resolution, HDMI 1080p@120Hz and 7.1 channel audio for an exceptional user console experience
► The receiver unit has 3 × USB2.0 ports that can be used to connect a keyboard, mouse and other USB2.0 compliant devices, including a USB2.0 hub
► Supports a data rate of 9Gbps and a maximum pixel clock of 300MHz
► Connect up to 16 extender sets to a Gigabit switch for multi-user access to multiple source devices
-Extends HDMI and USB devices beyond the
standard 2-3m cable limit for USB peripherals,
up to 390ft (120m) on a single CATx cable
- Use this extender for latency free HDMI video
transmission from 1080p up to 4K@30Hz
- Connect point-to-point for a single console
connection, or connect up to 16 sets of the
CrystalView EC to a Gigabit switch without
VLAN settings for 4K IP based
KVM extension
- Each extender device has a 4-position DIP
switch. Simply match the DIP switches on each
TX and RX pair to determine the routing path
for instant connection
-Data rate of 9Gbps
- Connect up to 3× USB2.0 devices to the
receiver at 480Mbps for USB2.0 console
applications
- HDMI 7.1 channel embedded audio support for
PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1
channel, Dolby Digital Plus, Dolby TrueHD, DTS
5.1 channel, DTS-HD High Resolution Audio,
DTS-HD Master Audio
- The kit includes a transmitter and a receiver
unit, 2 external 12V PSUs, and 2 sets of deskmount
brackets
-Superior surge protection built in

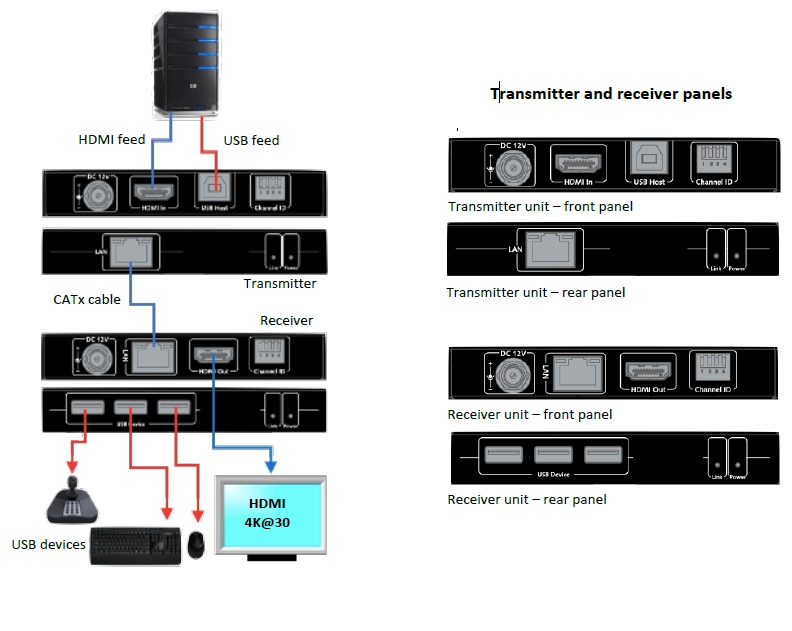

CRK-1DTXUH1-4K SETUP
Specification:
Dimensions
(W × D × H)
4.41" × 2.57" × 0.70"
112mm × 65.2mm × 18mm
Weight 0.40lb (0.18Kg), per unit
Power
DC 12V/1A locking connector
Local: less than 2.5W
Remote: Less than 4.0W
USB device ports: 0.5A per port
Video resolution Up to 4K@30Hz
Up to 1920×1080@120Hz
Video input signal HDMI 1.4b
Data rate and clock Data rate 9Gbps, pixel clock 300MHz
CATx cable
distance
Up to 390ft (120m) on Cat5e cable or
better
Over Gigabit IP up to the limit of the
network cabling
Other cables HDMI and USB: recommended standard
cable specifications
USB device support 3 × USB2.0 ports, up to 480Mbps
Controls 4-position DIP switch on each unit
Connectors
Transmitter:
1 × HDMI female type-A
1 × USB type-B
1 × RJ45 link connector
Receiver:
1 × HDMI female type-A
3 × USB type-A
1 × RJ45 link connector
LED Indicators Link and Power LEDs on both units
Environment
Operating temp: 32°F – 113°F (0°C –
45°C)
Storage temp: -20°F – 70°F (-4°C –
158°C)
Rel. humidity: 10% – 90%, noncondensing
Approvals FCC, CE
