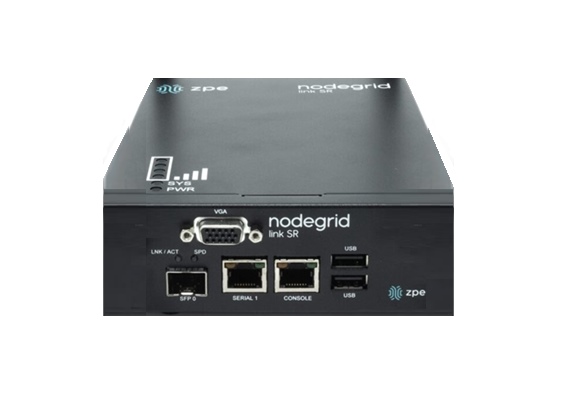

ZPE-LSR-24-Base - ZPE - Nodegrid Link SR (LSR) 1 RJ45, 1 ETH (PoE), 1 SFP, 2 GPIO, 2-Cores, 4GB DDR3, 16GB Disk, 1 VGA. PoE Powered (ZPE-LSR-T1-BASE)
ZPE-LSR-24-Base (LSR-T1-Base) LSR Base Model - NO ANTENI INCLUDED*
Description:
The Nodegrid Link SR brings flexibility to your network operations. Its powerful components deliver customizable networking wherever you need it, while its compact design can be tucked away to save crucial space. Link server rooms, closets, and branch locations to the internet, and get critical services to keep your network running. ZPE Nodegrid Link SR. 1 RJ45 Serial rolled, 1 ETH (PoE in), 1 SFP, 2 GPIO, 2 OUT, X86_64, 2-Cores, 4GB DDR3, Disk1: 16GB, 1 VGA. PoE & Single 10V-57V DC input. AC Power Adaptor not included. Order ZPE-LSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription. Deploy fast using zero touch provisioning and ZPE Cloud Stay in control even during outages with OOB via cellular failover Manage every device thanks to vendor-neutral Nodegrid Manager software
Features:
Secure, fast and consistent deployments across your branches with the ZPE Cloud
Combines Cellular gateway and Wi-Fi Access Point (AP) with power in via PoE or power adapter
Software Defined Networking, Network Function Virtualization, Guest OS, Kubernetes, and Docker capabilities
Minimizes MTTR, downtime and expenses with secure, centralized remote device access & control
Increases site reliability with open industry standard hardware, and easy-to-use software
Zero Touch Provisioning (ZTP) for fast and easy setup in remote locations
Integrates with ZPE Cloud and ZPE Systems Nodegrid Manager vendor-neutral, unified management solution
Direct Linux shell, HTML5 cross-device web access and command line interface
Modern 64-bit Linux Kernel for fast security patching and widespread software availability
Kubernetes and Docker-optimized for quick, flexible script and application integration
Extended Automation based on actionable real-time data
Failover to 4G/LTE modem
Linkway and multi-routing table capability
SSL VPN and IPsec
DHCP server extra IPs for your remote site or replace your current router altogether
Firewall built in and turns on with a checkbox
Secure selectable encrypted cryptographic protocols and cypher suite levels, configuration checksum
Power control and monitoring get alerts on suboptimal IT device health before malfunctions occur and solve problems automatically
Orchestration Puppet, Chef, Ansible, RESTful and ZPE Cloud
High density and flexibile interfaces for greater connectivity
Nodegrid Link SR Diagram
Specification:
Hardware Specifications:
CPU
Multi-core Intel x86_64bit CPU
Memory & Storage
4GB of DDR3 DRAM, 16GB Hardware EncryptedSSD
Interfaces
1 x SFP (1G)
1 x Gigabit (10/100/1000BT) Ethernet Interface on RJ45 with PoE in
2 x GPIO Port
2 x Digital Out Port
2 x USB 2.0 Hosts on Type A
1 x Wi-Fi optional
1 x Cellular Slot with Dual SIM Optional
1 x VGA port
Software Specifications
Port Access
Direct access by port name, TCP port, device name and IPv4/IPv6
High performance port login: <1 sec on SSH, <3 sec on Telnet
350+ simultaneous sessions
Port sharing
Command line interface (CLI)
Port custom field support, port icon configuration, port search
Device clustering across multiple Nodegrid units
Break-over SSH support
System Management
Extensible automated control based on actionable real-time data
Web GUI management portal, command line interface (CLI), Linux root shell
Zero Touch Provisioning for configuration and firmware updates
Multiple and customizable user levels of access
Auto-discovery via network scan
NTP support, global time zone support
SNMP
Orchestration Integration: Puppet, Chef, Ansible, RESTful, ZPE Cloud, and Nodegrid Manager
Access Protocols
HTTPS, SSHv1 and SSHv2, optional HTTP and Telnet
Device View Options
Tree, Table, Geo Map, Node and WEB with search capability
Integrates with ZPE Cloud
Security
X.509 SSH certificate support, 4096-bit encryption keys
Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1)
Selectable cypher suite levels: high, medium, low, custom
SSL VPN Client and Server
IPsec with support for multi sites
Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication
Local, backup-user authentication support
User-access lists per port
Group/role-based authorization: AD/LDAP, RADIUS, TACACS+
Fine grain and role based access control
Firewall IP packet and security filtering, IP forwarding support
MD5 / SHA System Configuration Checksum
System event syslog and data logs
Custom security settings
Strong password enforcement
Operating System
Built-in 64-bit Linux kernel (Nodegrid OS)
Infrastructure Specifications
Power
10-57V DC input
PoE-in
Power consumption 20W typical
Physical
DIM Rail and Wall Mountable
Size (L x W x H): 170 x 130 x 55 mm (6.69 x 5.11 x 2.16 in)
Weight: 1.04 kg (2.3 lbs)
Shipping weight: 1.58 kg (3.5 lbs)
Shipping (L x W x H): 228.65 x 342.9 x 88.9mm (9 x 13.5 x 3.5 in)
Environmental
Operation: 0 to 60° C (32 to 140° F), 20-90% RH, non-cond.
Storage: -20 to 67° C (-4 to 153° F), 10-90% RH, non-cond.
