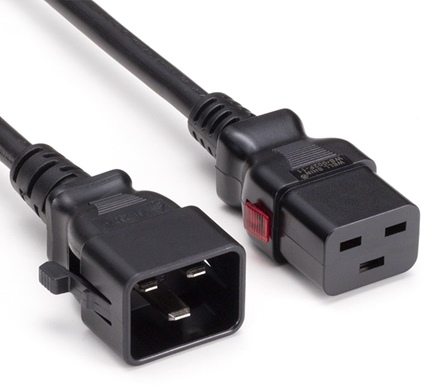

RN0751- RNX - TwyLock IEC C19 to C20 (20A) Dual Locking Power Cable - Black - 3m

TwyLock C19-C20 Dual Locking Power Cable

Description:

TwyLock C19 to C20 dual locking power cable, to prevent unintentional disconnection from error or vibration, preventing costly downtime of IT equipment. Additionally, coloured cables help to identify power feeds into PDUs easily. IEC C19 to IEC C20 with 12/3 SJTW wire. UL and cUL approved. Rated up to 20A 250V. Available in multiple colours and lengths.

Features:

• Locks on both ends without extra intervention. Easy to unlock.
• Compatible with P-lock equipment
• High quality. Certified by UL and cUL
• All cables certified up to 105°C operating temperature
• Compatible with most snap-in sockets of major PDU manufacturers
• High retention force. Pull force 30lbs (14kg) for 1 minute
• Multiple Colors available: black, red, blue and white. More colors on request
• Available in lengths from 1.0 meter to 2.5 meters. Other lengths on request
• Easily identifiable with part number and serial number labels on both ends
• Packaged in circular shape, not kinked

Specification:

Male Plug IEC60320 C20 3 prong 20A
Female Receptacle IEC60320 C19 3 prong 20A
Wire Jacket Standard SJTW
Gauge 12 AWG
Conductors 3 wire
Copper Wire Stranding 65 strands of 0.254mm wire
Jacket Material PVC
Temperature Rating Up to 105°C
Wire Outer Diameter 10.8mm
Conductor Color Code Black, White and Green / NACC (North American color code)
Voltage Up to 250 Volts AC
Amperage Up to 20 Amps
Color Multiple
Number Per Carton Varies
Carton Weight Varies
Carton Dimensions (46 X 31 X 27cm)
Testing 100% are individually tested for Hi-Pot, opens, shorts and pinout.
Certifications UL/cUL Listed
Environmental Compliance RoHS, REACH, ISO9001:2015
Country of Origin Taiwan
