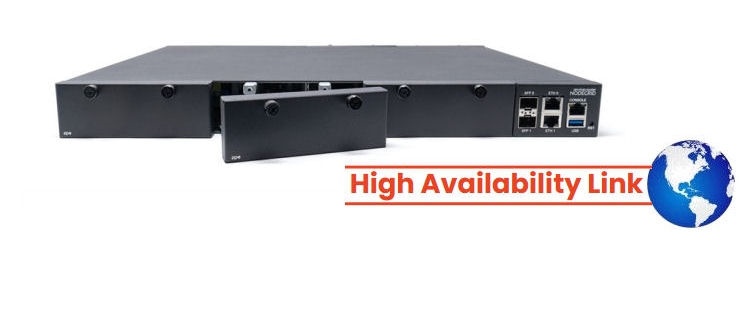

ZPE-CO-NSR-48-16288HA ZPE Coordinator Single Appliance ( HA Ready ) HA-NSR-48-DAC/4C/8+8GBDDR4,288GB MSATA-5SLOT
ZPE COORDINATOR SINGLE UNIT / SYSTEM PART ONLY
Description:
ZPE Single Unit ( Part of Pair only ) ZPE-COORDINATOR DDR4 16GB, 288 GB Storage NSR- with HA Licence ZPE Systems Nodegrid platform Coordinator set Paired HA Appliance setup. ( only 1 x HA Licence is supplied or used per pair ) A ZPE Nodegrid Coordinator is the primary node in a Nodegrid clustering setup, acting as the central management point for enrolling and controlling peer devices. It provides a unified interface for managing multiple Nodegrid appliances, streamlining configuration, and ensuring high availability within Data Centers or Branch networks. This main node that manages a cluster of other Nodegrid devices (peers) It acts as the central point for configuration, monitoring, and security across the network infrastructure. Licensing: Separately and dependant on the enterprise size. Requires specific live licenses to cover the HA and device/end point number. Options on configuration. Flexible configuration: For the most suitable Co-ordinator we customise the equipment configuration set for your requirements, security and access capabilities. Allowing for later expansion is also possible
Features:
ZPE-CO-NSR-48-16288HA ZPE Coordinator Single Appliance ( HA Ready ) HA-NSR-48-DAC/4C/8+8GBDDR4,288GB MSATA-5SLOT
Key Aspects of a ZPE Coordinator System:
Role and Function: Manages the cluster, oversees network operations, and ensures communication between nodes.
Cluster Management: In a Star configuration, the coordinator holds the list of all peers, providing centralized visibility and access.
This configuration is set as a Master coordinator and HA linked to share / backup / peer in one pair
Functions: It acts as the central hub for enrolling peer devices, managing connections, and authorizing access, particularly in star configurations.
Redundancy: To prevent a single point of failure, a second node can be added as a backup coordinator.
GENERAL:
Multi-Clustering: A Coordinator can connect to other clusters to act as a "super coordinator," providing centralized visibility across multiple, geographically distributed sites.
Enrollment: Enables new peers to join the cluster, allowing for easy expansion and management.
Setup: The first unit in a cluster is typically set as the Coordinator, with subsequent units added as peers, often requiring a shared cluster name and Pre-Shared Key (PSK).
Clustering Types:
Star: One node acts as the central coordinator for all other peers.
Mesh: All units can see each other, but a coordinator is used for initial enrollment.
Coordinator management showing Pair Method - DSX2 - CORE Migration management.
ONLY ONE UNIT SUPPLIED WITH THIS PART CODE
Specification:
ZPE-CO-NSR-48-16288HA ZPE Coordinator Single Appliance ( HA Ready ) HA-NSR-48-DAC/4C/8+8GBDDR4,288GB MSATA-5SLOT
The specification is flexible for any required Coordinator system.
Start rec. config:
ZPE-CO-2XNSR-48-16288HA ZPE ZPE-Coordinator 2 X-
ZPE-CO-NSR-48-16288HA Appliance Set ZPE Systems Nodegrid platform Coordinator set Paired HA software licence Appliance. ( only 1 x HA Licence is supplied or used per pair )
Each Appliance PE-CO-NSR-48-16288HA
Comprising:
1 x Purpose HA Config NSR-48-DAC units built upto 16G Per Appliance. Each being the of ZPE Nodegrid Net SR modular Chassis, 4-Core Intel CPU, Backplane Switch, 8GB DDR4, 32GB MSATA BASE, 5 Slots, 2 SFP+, 4x USB, 2x GbE, 1x HDMI, 1x console.
Additional :NSR/GSR - DDR4 UPGRADED - 8GB to 16GB
Added software: ZPE-NGM-FL-HA-GSUB-5Y-001 for HA pair
Building with futureproofing in mind Hard drive 288 (32+SATA256 Removeable)
Allowing for later Chassis slot expansion requirements.
Hardware Specifications
CPU
Intel x86_64 Multi-Core
Memory & Storage
Custom 16 GB (2x 8 GB of DDR4 DRAM, 32 GB used for operating system SATA, Custom 256 SSD Removeable storage for data (Upgradeable)
Interfaces
2 SFP+ Ethernet
2 Gigabit Ethernet
1 Console on RJ45
1 USB 3.0
2 x USB 2.0
1 HDMI
Warranty
2 Years Basic included only
( Recommended Platinum advanced UK Cover for critical environments POA - see specialist Mediatron partner UK )
Software Specifications
Port Access
2 SFP+ Ethernet
2 Gigabit Ethernet
1 Console on RJ45
1 USB 3.0
2 x USB 2.0
1 HDMI
System Management
Extensible automated control based on actionable real-time data
Web GUI management portal, command line interface (CLI), Linux root shell,SNMP
Zero Touch Provisioning for configuration and firmware updates
Multiple and customizable user levels of access
Auto-discovery via network scan & hostname of attached serial port
NTP support, global time zone support
Network Failover to 4G/LTE or Wi-Fi
Orchestration Puppet, Chef, Ansible, Nodegrid Manager, OpenFlow, RESTful
Access Protocols
HTTPS, SSHv2; optional HTTP, Telnet and SSHv1
Device View Options
Tree, Table, Geo Map, Node and WEB with NodeIQ search
Managed Power Devices
Vendor Neutral PDU support
Managed IPMI Devices
OpenBMC
HP iLO
Dell iDRAC
Redfish API
Supermicro/Quanta IPMI
Cisco CIMC/UCS
IBMIMM
Oracle ILOM
EMC/NetApp Storage IPMI
Security
X.509 SSH certificate support, 4096-bit encryption keys
Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1)
Selectable cypher suite levels: high, medium, low, custom
Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication
Local, backup-user authentication support
User-access lists per port
Group/role-based authorization: AD/LDAP, RADIUS, TACACS+
Fine Grain port access, power access, appliance privilege
IP packet and security filtering, IP forwarding support
SSL VPN (Client and Server), IPsec, Firewall
MD5/SHA System configuration checksum, System event syslog
System event syslog
Custom security with secure default settings
Strong password enforcement
Network Function Virtualization (NFV)
Operating System
Built-in 64-bit Linux
Infrastructure Specifications
Power
Dual AC 100-240 VAC, 50/60 Hz, 2.0 A
Dual DC: 36-75 VDC, 7.3-3.5A
Power Consumption 150W typical
Physical
Front-Rear mounting brackets
Size (Width x Depth x Height): 438 x 332 x 43mm (17.2 x 13.1 x 1.7 in), 1U
Weight: 4.9 kg (10.8 lb), depending on options
Environmental
Operation: 0 to 45° C (32 to 113° F), 5-95% RH, non-cond.
Storage: -20 to 67° C (-4 to 153° F), 10-90% RH, non-cond.
