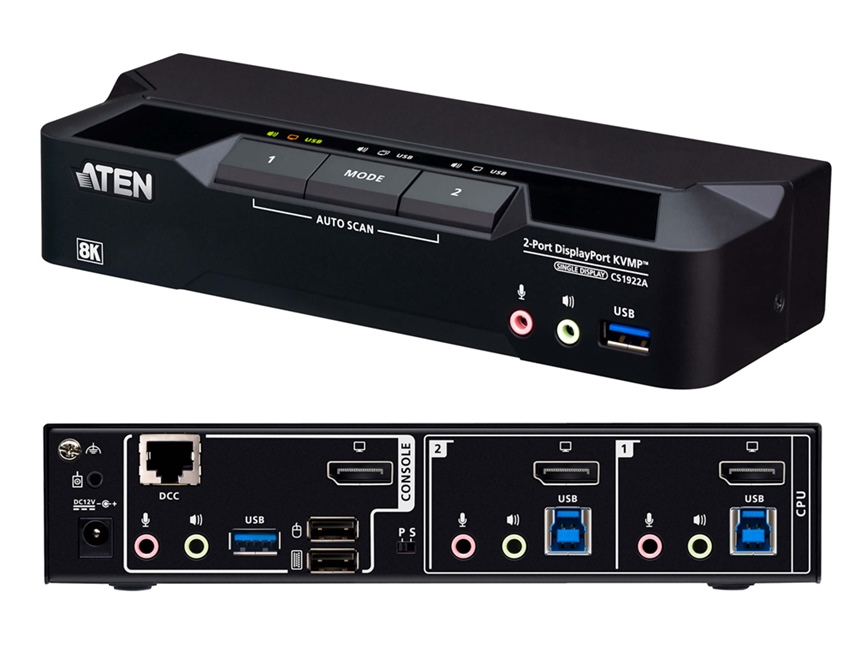

CS1922A - ATEN - 2-Port USB 3.0 8K DisplayPort KVM Switch (Cables included) *NEW*
CS1922A - 2 Port DisplayPort KVM Switch
Description:
Built on ATEN’s enterprise-grade design heritage, the CS1922A belongs to ATEN’s first KVM switch series with 8K support, delivering professional-grade performance and reliable multi-computer control from a single console.
Features:
Control two computers with a single USB keyboard and mouse while sharing USB peripherals and enjoying ultra-high-resolution video.
• Up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 240 Hz
• Supports daisy-chaining for dual-display setups by connecting two CS1922A units, enabling dual-screen control through a single connection
• All DisplayPort/USB cables and power adapter included for hassle-free installation
• Computer selection via pushbuttons, remote port selector, hotkeys, mouse, and RS-232 commands

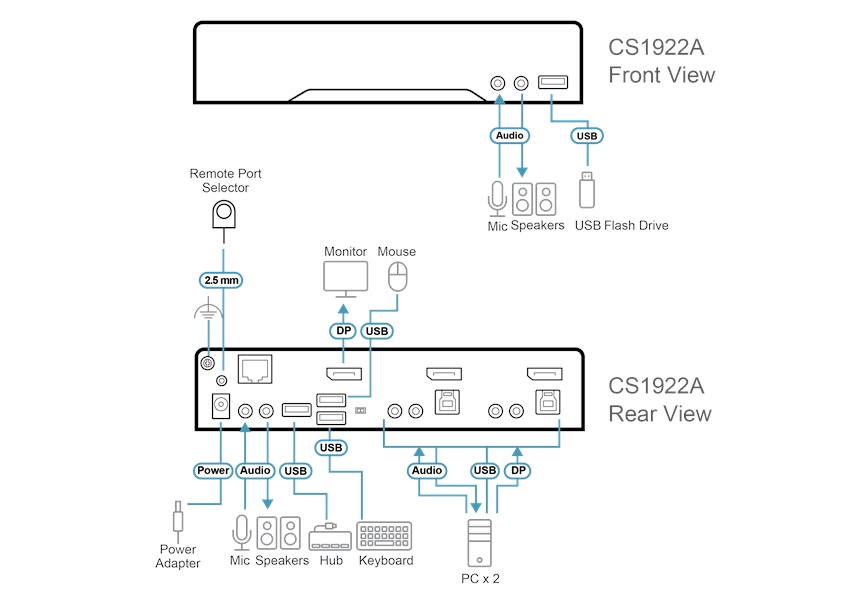

CS1922A Diagram
Specification:
Package Contents:
1 x CS1922A 2-Port USB 3.0 8K DisplayPort KVMP™ Switch
2 x DisplayPort cables (1.5 m/5 ft)
2 x USB Type-A to Type-B cables (USB 3.0-A to USB 3.0-B; 1.8 m/6 ft)
2 x microphone cables (1.8 m/6 ft)
2 x speaker cables (1.8 m/6 ft)
1 x remote port selector
1 x power adapter
1 x user instructions
Computer Connections 2
Port Selection Hotkey, Pushbutton, Mouse Wheel, RS-232 Commands, Remote Port Selector
Connectors
Console Ports 2 x USB Type A Female
1 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports 2 x USB3.1 Gen1 Type B Female (Blue)
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports 1 x RJ-45 Female
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
LEDs
KVM 3 (Orange)
Audio 3 (Green)
USB Link 3 (Green)
Switches
Selected 3 x Pushbutton
Station Selection 1 x Slide Switch
Emulation
Keyboard / Mouse USB
Video Up to 7680 x 4320 @ 60Hz, 5120 x 2880 @ 60Hz, 4096 x 2160 @ 240Hz
Scan Interval 1-99 seconds (default: 5 seconds)
Power Consumption DC12V:2.26W:69BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.47 kg ( 1.04 lb )
Dimensions (L x W x H) 20.00 x 7.30 x 4.30 cm
(7.87 x 2.87 x 1.69 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
