C2W36TE-GPAE2M99-GN Server Technology PRO2 Switched PDU PDU, Servertech, 0RU, Input IEC 60309 532C6S, 3m cord, 400/230V, 32A, 3PH, Output 18xCX 18xC13, Switched Master + Switched Link, Global, w/ Brackets / ServerTech

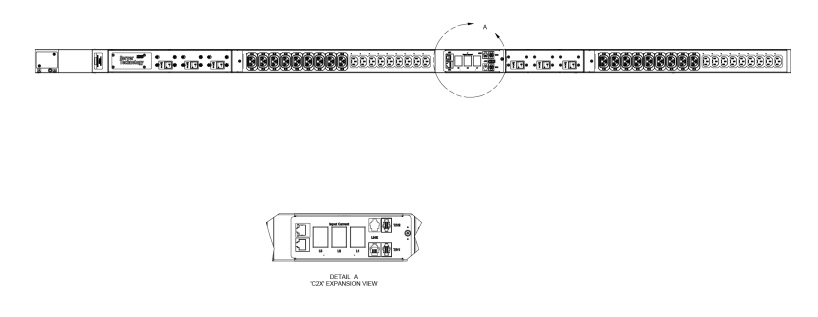

Server Tech C2W36TE-GPAE2M99-GN Line drawing

Description:

C2W36TE-GPAE2M99-GN Server Technology PRO2 Switched PDU PDU, Servertech, 0RU, Input IEC 60309 532C6S, 3m cord, 400/230V, 32A, 3PH, Output 18xCX 18xC13, Switched Master + Switched Link, Global, w/ Brackets / ServerTech C2X36TE-4PAE2M99 (Link) The Server Technology® PRO2 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched “Primary” PDU can be connected to as many as three (with optional module) PRO2 Switched “Link” PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

Features:

Key Features
HDOT Cx Outlets
Cx is the future-ready UL tested hybrid of a C13 and C19 outlet
accommodating both C14 and C20 plugs.
Network Monitoring
Gain access to valuable data through connections including
HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS232 serial, and more.
Hot-Swap Network Card
Network access is ensured when power is lost to the Primary unit
with backup power provided by the Linked unit.
Star Multi-Linking
PRO2 provides the ability to link up to four power circuits using
one IP address. Primary Expansion PDU provides backup power
to network card.
Temperature/Humidity Monitoring
Primary and Expansion (select products) units each support two
external 10' (3m) T/H probes. Receive SNMP-based alerts and
email notifications.
Auto-Flip Current Display
Easy-to-read LEDs display current per phase to help prevent
overloads and simplify three-phase load balancing in highdensity cabinets.
Per-Inlet Power Sensing
PIPS® (Per Inlet Power Sensing) Monitors Current Load (A),
Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power
Factor, & Energy per inlet.
Branch Current Monitoring
Monitors current at each breaker branch and provides SNMPbased alerts and emails on high usage that risks a tripped circuit.
Branch Circuit Protection
This PDU meets the UL and IEC 62368-1 requirement for branch
circuit protection through UL 489 rated magnetic-hydraulic circuit
breakers or UL 248 fuses.
Outlet Control
On Switched PDUs, cycle power to individual outlets or groups of
outlets to reboot servers, or power off unused receptacles.
Alternating-Phase Outlets
Evenly distributes multiple phases of power to each outlet for
simplified load balancing, reduced cord lengths, and better
airflow.
High Temperature Rating
This product has been tested and approved for safe and reliable
operation in 60 °C data center environments.
Flexible Mounting
Includes standard button mounts along with provisions for
custom mounting brackets.
Color-Coded Options
Select from six colors to designate PDU circuits in the data center — black, white, red, green, blue, and yellow.

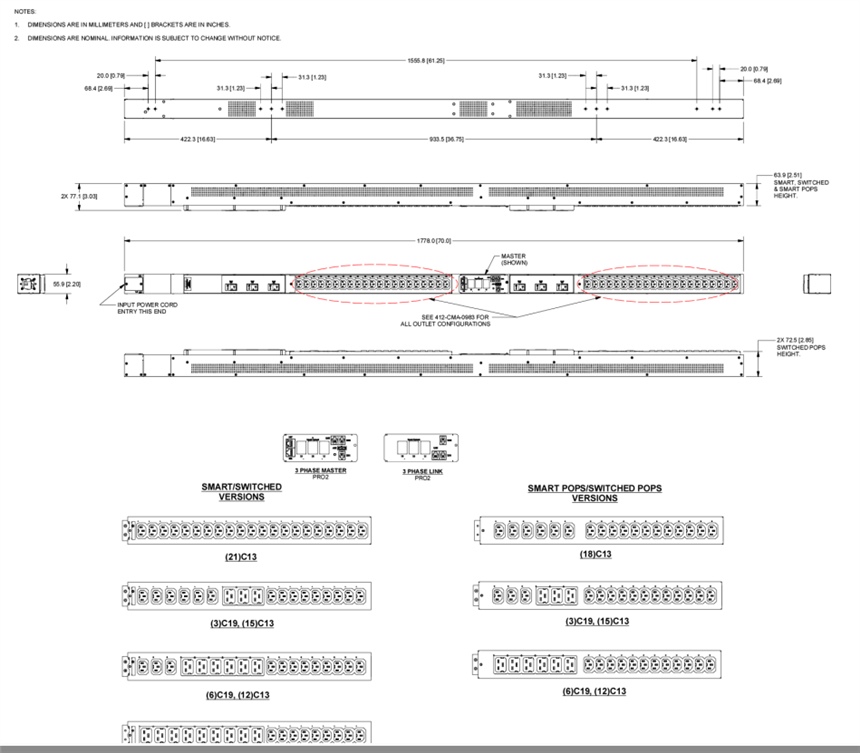

SVT-C2W36TE-GPAE2M99-GN Line drawing break areas

General Guide showing other configurations- not exact final model

Specification:

Inputs
Input Voltage (V): 400
Frequency 50/60 Hz
Input Plug: 230/400V Wye 32A IEC 60309 3P+N+PE 6Hr
Input Current (A): 32
Input Current Rated (A): 32
Input Power Capacity (kW): 22

Outputs
Connector Rating
(18) x IEC 60320/C13 Global Rating: ≤ 10A @230V L-N
(18) x Cx Global Rating: ≤ 16A @230V L-N

The Cx outlet has superior cable retention. Moderate force is required when plugging in a C14 or C20 connector to fully seat the plug and to
ensure proper installation. An incorrectly installed plug will be loose and will not provide a reliable connection.
Outlet #1 opposite the power input
Branch Circuit Protection
UL 489, CSA C22.2 No. 5 & IEC/EN 60947-2 Compliant 2-pole, 20A trip circuit breakers, six (6) branch, rating: ≤ 16A, 10 kAIC (North America) /
(5 kAIC ROW) Interrupt Rating


Physical
Dimensions: 70.0in tall x 2.2in wide x 2.5in deep [1778mm x 56mm x 64mm]
Environmental
Operating Environment: 32°F to 140°F / 0°C to 60°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment: -22°F to 176°F / -30°C to 80°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: < 10W for all configurations

Communications & Security
10/100/1000 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector)
Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU}
Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6,
LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP


Certifications
Global:
Safety
EN IEC 62368-1 (TUVR certified, T-mark)
IEC 62368-1 incl. regional, national and harmonized differences (IECEE CB scheme) EMC
EMC
EN 55032 / CISPR 32
EN 55035 / CISPR 35
EN 61000-3-2 / IEC 61000-3-2
EN 61000-3-3 / IEC 61000-3-3
CE Mark
2011/65/EU (RoHS Directive)
2014/35/EU (Low Voltage Directive)
2014/30/EU (EMC Directive)
UKCA Mark
RoHS
Electrical Equipment (Safety)
Electromagnetic Compatibility
Measurement Accuracy
Input Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (0.3 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 1% at 0.01 amp resolution (above 0.25 amp)
Voltage = ± 1% at 0.1 volt resolution (nominal ± 10%)
Active Power = ± 1% at 1 watt resolution
Apparent Power = ± 1% at 1 volt-amp resolution
Power Factor = ± 3% at 0.01 resolution
Crest Factor = ± 10% at 0.1 resolution
Energy = ± 1% at 0.1 kilowatt-hour resolution
Branch Measurement Accuracy
Current = ± 3% at 0.01 amp resolution (above 0.5 amp)
Optional Accessories
EMTH-2-10 Combination Temperature/Humidity Probe,
