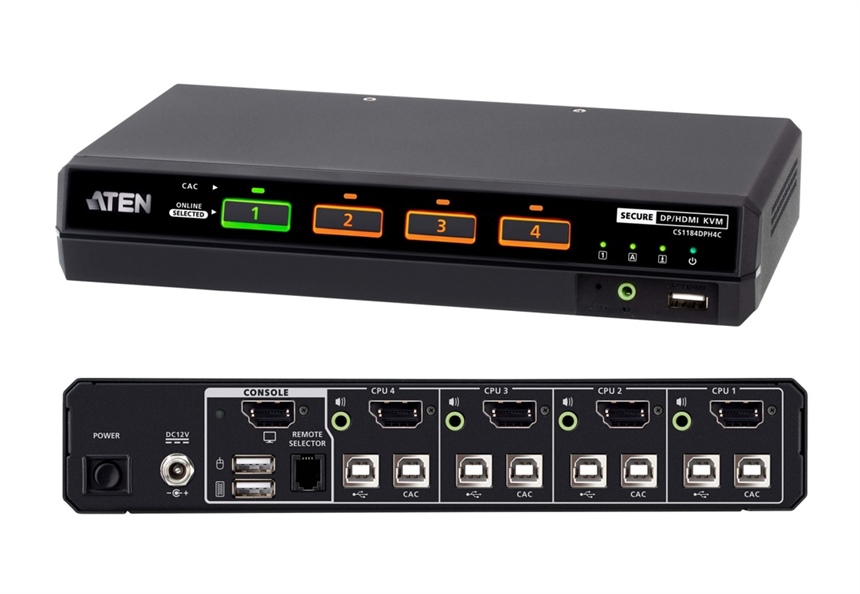

CS1184DPH4C - ATEN - 4 Port USB 5K DisplayPort/HDMI Universal ATEN Secure KVM Switch with CAC (PSD PP v4.0 Compliant)
CS1184DPH4C - Secure KVM Switch
Description:
ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP). ATEN PSD PP v4.0 Universal Secure KVM Switch CS1184DPH4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
Features:
• Advanced Security: PSD PP v4.0 compliant, providing multi-layered protection for sensitive and classified environments.
• 4-Port Switching: Securely control up to four computers using a single keyboard, mouse and monitor.
• 5K Video Resolution: Supports resolutions up to 5120 × 2880 @ 60Hz via DisplayPort or HDMI.
• CAC Reader Support: Allows sharing of a Common Access Card (CAC) reader for secure authentication, with configurable access controls.
• Data Isolation: Prevents data transfer between connected computers through isolated data channels and unidirectional data flow.
• Tamper Protection: Features chassis intrusion detection, tamper-evident labels and non-reprogrammable firmware.
• Peripheral Filtering: Restricts unauthorised USB devices and provides configurable keyboard and mouse filtering.
• Manual Port Selection: Switch between computers using front-panel pushbuttons or an optional Remote Port Selector (RPS).
• Video DynaSync™: Optimises display settings and prevents boot-up display issues when switching between computers.
• Audio Isolation: Supports analogue speaker audio with strict audio filtering to prevent data leakage.
Ideal for: Government, military, defence, healthcare and financial organisations requiring secure access to multiple computers operating across different security classifications.

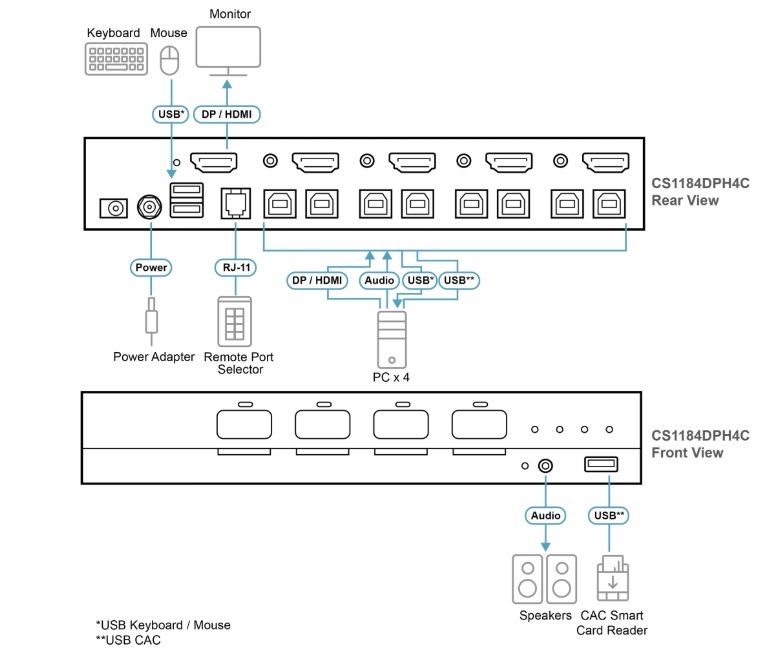

CS1184DPH4C Diagram
Specification:
Package Contents
1x CS1184DPH4C 4-Port USB 5K DisplayPort/HDMI Universal Secure KVM Switch with CAC
1x power adapter
1x foot pad set
1x port name labels
1x HDMI cable lock set
1x user instructions
Computer Connections 4
Port Selection Pushbutton, Remote Port Selector
Connectors
Console Ports 1 x DP/HDMI Female (Black)
2 x USB Type-A Female (White)
1 x Mini Stereo Jack Female (Green; 1 x front)
KVM Ports 4 x DP/HDMI Female (Black)
8 x USB Type-B Female (White)
4 x Mini Stereo Jack Female (Green)
Power 1 x DC Jack
USB CAC Port 1 x USB Type-A Female (White; 1 x front)
Remote Port Selector 1 x RJ-11 (Black; 1 x rear)
Switches
Port Selection 4 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 1 x Pushbutton
LEDs
Power 1 (Green)
Online / Selected (KVM Port) 4 (Orange / Green)
Online / Selected (CAC Port) 4 (Orange / Green)
Video 1 (Green)
Key Lock 3 (Green)
Emulation
Keyboard / Mouse USB
Video Max. 5120 × 2880 @ 60Hz, 5120 × 2160 @ 60Hz, 5120 × 1440 @ 60Hz/120Hz/144Hz, 3840 × 2160 @ 60Hz/120Hz/144Hz
Maximum Input Power Rating 100–240V~; 50-60 Hz; 1.2A
Power Consumption DC12V:14.88W:113BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.21 kg ( 2.67 lb )
Dimensions (L x W x H) 24.50 x 14.36 x 4.30 cm
(9.65 x 5.65 x 1.69 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
