Adder SV2-EURO SmartView 2 port KVM switch (Euro power supply)

Product images may be generic and may not reflect actual item.

Description:

The fully featured desktop KVM switch allowing multiple PCs/servers to be controlled and monitored from a single keyboard, monitor and mouse. Keyboards and mice can be conveniently located up to 20 meters (64 feet) away and with SmartView's Optimum Video Quality (OVQ) circuit, very high video resolution and quality is maintained, even over extended cable distances. SV2 is ideal for use in an environment where two PCs need to controlled. Perhaps a notebook and desktop or a network file server and communication server combination.

Professional all metal desktop KVM switch manufactured in UK

Exceptionally high video quality with screen resolution up to 1900 x 1440

Mixed PS/2, wheel mice and AT/ RS232 keyboards and mice supported

Channel switching from front panel, mouse or user selectable hot-key combinations

Password protection prevents unauthorized operation

Compatible with all major software including DOS, Windows 3.x/95/98/NT/2000, Linux, Unix and Netware

Features:

Front panel key - Used for selecting channels manually.

Front panel display - 7 Segment display shows the currently selected port and keyboard and mouse activity.

Channel selection - Convenient switching using selectable keyboard hot-key, 3 button mouse or front panel key.

High video quality - The OVQ Circuit ensures that Optimum Video Quality is maintained, even over extended distances. Screen resolution of up to 1900 x 1440 supported.

Hot connection of devices - Can be connected to many running PCs without reboot by using the keyboard and mouse reset feature.

On the fly configuration - User options can be selected without powering off the system.

Security lockout feature - In addition to the security already provided by your computer. SmartView supports a lockout feature with user selectable password protection.

Variable hot-key - Commands can be selected for quick channel selection.

Expandable - Where the size of your installation is beyond the scope of a single SmartView, additional units can be cascaded. This will allow you to use multiple units to provide a video-switching network.

Extended cable distance - CPUs can be located up to 20 meters away from SmartView.

Auto-scan - The SmartView can be set to automatically scan all ports or all active ports at a user definable rate.

Automatic mouse conversion - PS/2, IntelliMouse and RS232 type mice are all supported between switch and CPUs.

Controlling mouse/trackball can have a wheel but must be PS/2 type (check with your supplier to confirm compatibility).

IBM ThinkPad compatible - Tested with ThinkPad (mouse and keyboard) splitter cable and docking station.

Physical (both models) - All metal case180x120x28mm.

Power - 5Vdc, 500mA. Specify UK, Euro, US or universal versions when ordering.

EMC - 89/336/EEC CE marked.

LVD - 73/23/EEC.

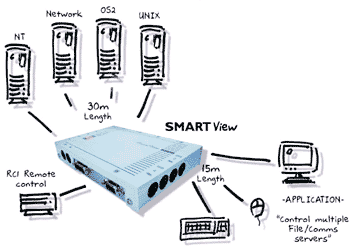

Typical configuration.

Specification:

1 Shared keyboard, monitor and mouse to 2 CPUs.

Connectors
2 x 15 way HD D Female for CPU video
2 x 6 way mini DIN Female for CPU keyboard.
2 x 6 way mini DIN Female for CPU mouse.
1 x 6 way mini DIN Female for shared keyboard.
1 x 6 way mini DIN Female for shared mouse.
1 x 15 way HD D Female for shared monitor.
1 x 5V dc 500mA power inlet for external PSU.
