Unfortunately we do not stock the
Fujitsu FJ-NC14004-B402-82B KVM Console Drawer, with Separate 1U Multiplatform 8-port KVM switch ( HQ Bundle )
currently.
Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.
Fujitsu FJ-NC14004-B402-82B KVM Console Drawer, with Separate 1U Multiplatform 8-port KVM switch ( HQ Bundle )

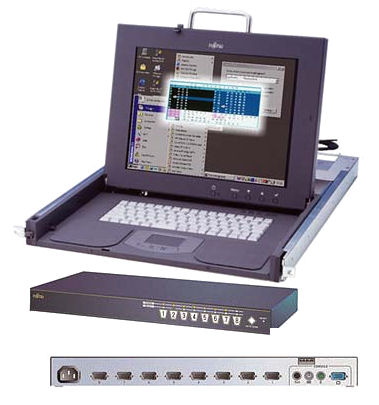

1U KVM Console Drawer Front View with separate additional 1U KVM Rack mount switch version supplied as bundle
Description:
Fujitsu FJ-NC14004-B402/UK FD-1000AT Console Drawer (15" LCD 1024 x 768) High quality Fujitsu LCD-TFT Screen. Bundle with separate included 1U Multiplatform KVM Switch. Fujitsu FD1000 Range rack mount KVM Drawer and Multiplatform switch Bundle. KVM Cables not included see compatible products to select desired types. As server density increases in today's server racks, it becomes necessary to reduce the size of any KVM solution whilst at the same time increasing the functionality. SERVIS DRAWER makes this possible by making either a 8 or 16 port KVM option fit together with a high resolution TFT LCD and keyboard and touch pad for simple local operation. PLEASE NOTE: THIS PRODUCT REQUIRES 19" SLIDING RAIL KIT ADDITIONAL PART. Not included. SEE OPTIONS IN "compatible products" For standard 19” rack cabinets see select part No. NC14003-T591 Fujitsu NC14003-T591 FD-1000AT Console Drawer Guide Rails (Standard Inside Mounting) Pack includes 1U Multiplatform 8-port Fujitsu KVM Switch PS/2, USB, Sun I/O, Sun USB Fujitsu 8Port Multiplatform KVM Switch with Sun Keyboard user port plus PS2 as standard. Where desk space or Server room space is at a premium, or where a single operator uses multiple systems, this KVM switch through its multi processor design ensures the seamless stable switching operation between any attached systems. The unit is future proof with built in support for PS/2, Sun I/O, Sun USB, MAC and PC USB out of the box. A simple cable exchange selects the appropriate host interface. The user has the choice of Hot Keys (Where configurable keys on the host keyboard that can be dedicated to the switching operation, for example pressing the key twice), or Front Mounted Buttons or from the intuitive OSD (On Screen Display). Supplied with rack mount kit.
Features:
CONSOLE DRAWER:
Flat modular construction for 19" rack mounting.
High Quality Fujitsu 15" TFT LCD supporting resolutions up to 1024 x 768.
Optional Sun/IA PS/2 or USB support allowing control of IA SUN Blade/Fire series Servers. (Cable configuration only via the SERVISCableSystem)
Built in On Screen Display (OSD) allows Server naming and selection (When used with the optional KVM products).
Collapses to only 43mm high for 1U implementations.
Side rails allow easy installation and configuration.
Short pull design with front opening screen for added protection from accidental damage.
SWITCH:
1U with rack mount kit and removable front panel.
Configurable Hot keys
Support from 8 to 64 Servers (Cascadeable).
Support for future system types with Internet downloadable firmware.
1.8M. 3M and 5M cables available.
Extendable front face for easy rack mounting of the console connections close to the back edge of the rack.
Support for USB, PC PS/2 and SUN systems, both Sun I/O and Sun USB
Switching options can be chosen from OSD (On Screen Display), front panel switches and Hotkey switching with full support of scrolling mice and indicator lights

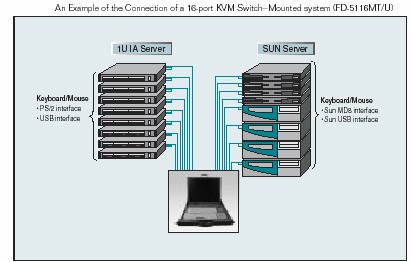

Fujitsu Drawer with switch setup cascaded example
Specification:
1 U Sliding Rack mount Drawer
(15" LCD 1024 x 768) TFT Screen with Keyboard and Touch Pad Mouse.
Output Lead to PS/2 Keyboard Video Mouse Computer ports
PLEASE NOTE: THIS PRODUCT REQUIRES 19" SLIDING RAIL KIT ADDITIONAL PART. SEE OPTIONS IN
"compatible products"
For standard 19” rack cabinets see select part No. NC14003-T591
Fujitsu NC14004-B402 FD-1000AT Console Drawer Guide Rails (Standard Inside Mounting)
FUNCTIONAL SPECIFICATIONS
LCD
Size 15" TFT colour
Resolution 640 x 480 / 800 x 600 / 1024 x 768
Active Area 304.1 x 228.1 mm
Pixel Pitch 0.297 x 0.297 mm
Compatability VESA DPMS and DDC 2B
Contrast Ratio 250 typ. (200 min.)
Viewing Angle left 75, right 75, upper 45, lower 75 deg
Scan Frequencies (Vert) 50 ~ 75 Hz
Scan Frequencies (V/H) 31.5 ~ 60 KHz
Panel colour 16.7 million display colours
Language Selection English,German,Italian,French, Spanish
Life 35,000 (25,000 min) (50%
Luminance 220 CD/m2
Luminance 220 CD/m2
Certification CE,UL,TUV,FCC Class B, VCCI Class B
PHYSICAL SPECIFICATIONS
Storage Temperature -20 ~ 60 deg C
Operating Temperature 0 ~ 40 deg C
Dimensions (HxWxD) 42 x 485 x 642 (Slide Rail Closed) 42 x 485 x 1117 (Extended) mm
SWITCH UNIT:
1 User to 8 Computers Multiplatform Switch With ON SCREEN DISPLAY FEATURE
Fujitsu 8Port Multiplatform KVM Switch with Sun Keyboard user port and PS2 Keyboard and mouse user ports.
Output Ports to Computers:
8 x HD15 way Socket for Fujutsu D15 Servis single cable system adapting to chosen platform
User Ports
1 x 6 MCC Socket for PS/2 mouse (Green)
1 x 6 MCC Socket for PS/2 keyboard (Violet)
1 x 8 MCC Socket for SUN keyboard (Black)
1 x HD15 way Socket for monitor (Blue)
