CS1944 - Aten - 4 Port USB 2.0 Mini DisplayPort Dual View KVMP Switch (DisplayPort KVM)

CS1944 (DisplayPort)

Description:

Discontinued replaced by new version CS1944DP.. The CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch allows access to 4 computers from a single USB keyboard and USB mouse with dual displays. The KVM switches amazing functionality combines a Dual view 4-port Mini DisplayPort switch, with a 2-port USB 2.0 hub, and front panel USB quick charge port for mobile devices. The CS1944 further improves on previous KVM designs with the latest Mini-DisplayPort and Mini-TOSLINK connectors. It also provides the capability of digital video & audio with reliable Ultra high resolution, vivid picture quality, surround sound with SPDIF connections. The CS1944 is ideal for multimedia applications, and offers the ultimate in space-saving, streamlined KVM technology for the desktop.

Features:

• One dual-view USB console simultaneously controls 4 Mini DisplayPort computers and 2 devices
• USB quick charge mode (front panel USB port)
• Mini DisplayPort 1.1a & HDCP compatible
• Full bass response provides a rich experience for digital surround sound systems
• Superior video quality – enables up to 2650 x 1600 resolution and 3D displays up to 1920x1080
• 2-port USB 2.0 hub built in, fully compliant with USB 2.0 specifications
• Computer selection via front touch panel /hotkeys/ mouse*
• Independent switching for USB peripherals, audio, and KVM focus
• Keyboard and Mouse support emulation and bypass
• Mac keyboard support and emulation**
• Multilingual keyboard mapping – Supports English, Japanese, and French keyboards
• Multiplatform support – Windows, Linux and Mac
• Power on Detection

* Mouse port switching only workable under mouse emulation. For 3-key USB wheel mouse only.
**PC keyboard combinations emulate Mac keyboards.
**Mac keyboards only work with their own computers

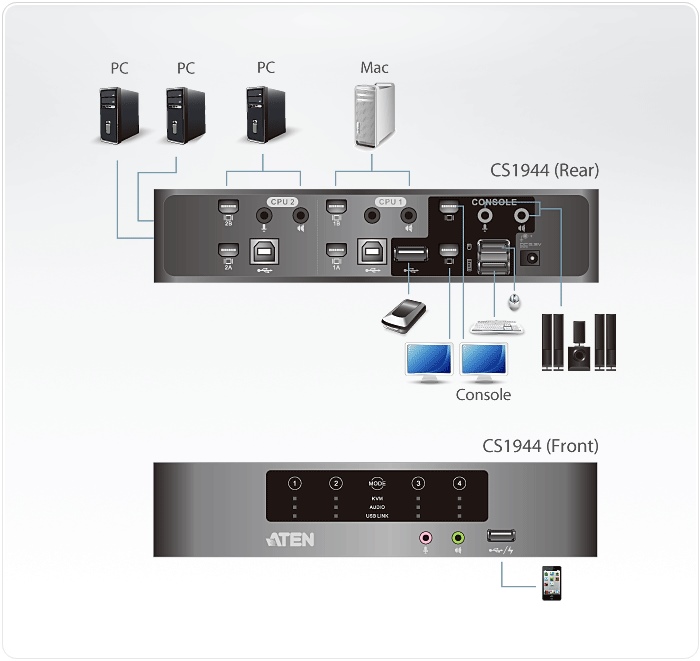

DIAGRAM:


Specification:

Package Contents:

1x CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch
4x Mini DisplayPort 1.1a 1 m Cable
4x Mini DisplayPort 1.1a 2 m Cable
4x USB 2.0 1.8 m Cable
4x Audio Jack 1.8 m Cable Sets
1x Power Adapter
1x User Instructions

Computer Connections

Port Selection Touch Panel Switches, Hotkey, Mouse
Connectors Console Ports Keyboard 1 x USB Type A F (Black, rear panel)
Video 2 x Mini DisplayPort F (Black)
Mouse 1 x USB Type A F (Black, rear panel)
Speaker 1 x Mini TOSLINK Jack F (Black)
1 x 3.5mm Audio Jack F (Green)
Microphone 1 x Mini TOSLINK Jack F (Black)
1 x 3.5mm Audio Jack F (Pink)
KVM Ports Keyboard / Mouse 4 x USB Type B F (White)

Video

8 x Mini DisplayPort F (Black)
Speaker 4 x Mini TOSLINK Jack F (Black)
Microphone 4 x Mini TOSLINK Jack F (Black)
USB 2.0 Hub 2 x USB Type A F
(White; 1 x Front panel, 1 x Rear panel)
Power 1 x DC Jack
Switches Selected 4 x Point Touch Panel

LEDs

KVM 4 (Orange)
Audio 4 (Green)
USB 4 (Green)
Emulation Keyboard USB
Mouse

Video

DP: 2560 x 1600 resolution @ 60Hz, or 3D Display 1920 x 1080 resolution @ 120Hz
Scan Interval 1 – 99 seconds (Default: 5 seconds)
Power Consumption DC5.3V, 8.63W

Environmental

Operating Temp. 0 – 50°C
Storage Temp. –20 – 60°C
Humidity 0 - 80% RH, Non-condensing

Physical Properties

Housing Plastic
Weight 614 g
Dimensions
( L x W x H ) 19.70 x 19.70 x 4.47 cm

* The specification and pictures are subject to change without notice.

* All trademarks and logos are the properties of their respective holders.
