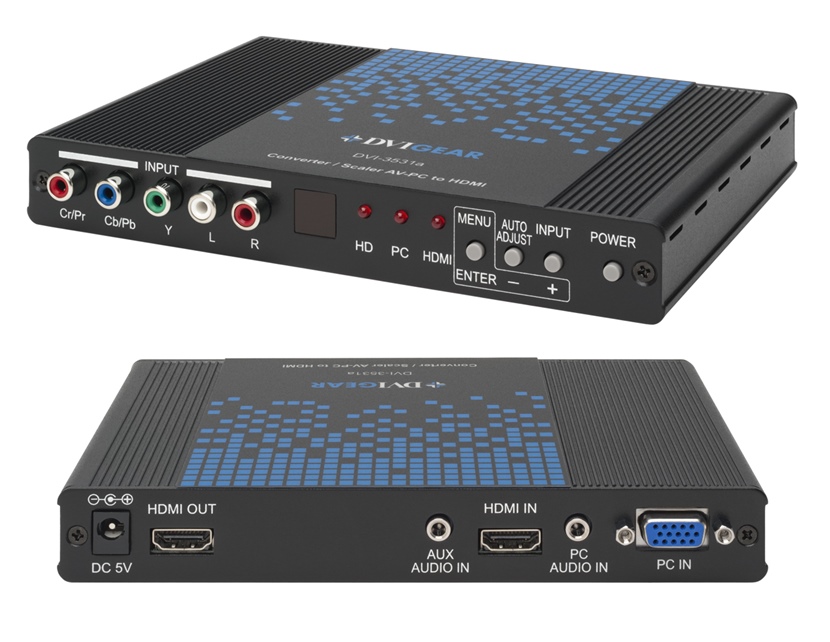

DVI-3531a (AV Scaler / Converter)
Description:
The model DVI-3531a is a flexible Converter/Scaler that provides selection of three input signal formats: Component Video, Analog RGB and HDMI/DVI. Each input format includes support for a stereo audio connection. The selected input signal is converted to a digital HDMI signal with embedded audio. The DVI-3531a accepts a broad range of input signal resolutions and supports pixel clock rates up to 165 MHz. Two high performance scaling engines provide user-selectable output resolutions up to 1080p and 1920x1200. The unit is controlled via intuitive on-screen menus, which can be accessed via front panel controls or by an included IR remote control unit. These features make this unit an ideal solution for applications where legacy analog video sources must be integrated into digital HDMI/DVI display systems.
Features:
• Supports HDTV inputs up to 1080p and PC inputs up to 1920x1200 resolution
• User-selectable output resolutions up to 1080p and 1920x1200 / 60Hz
• Supports HDMI/DVI input signals with or without HDCP encryption
• Supports RGB analog, YPbPr and YCbCr Component Video inputs
• Controllable via front panel and IR remote
• Locking DC power connector for added security
• Dual Output Converter, simultaneous analog RGB and digital DVI outputs
• Equipped with 3D Motion-Adaptive De-Interlacing and Digital Noise Reduction
• Supports 3:2 Pull-Down with 2:2 Pull-Down Recovery
• Auto-Power Recovery and Auto-Memory Restore
• Intuitive On-Screen Display menus make setup quick and easy
• Rugged low-profile metal enclosure
Specification:
Performance:
Compliance HDMI v1.2, HDCP v1.1 and DVI v1.0
Maximum Pixel Clock Frequency 165 MHz
Maximum Video Bit Rate 1.65 Gbps (single-link)
Supported Color Depth 8-bit
Supported HDTV Resolutions 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
Supported PC Resolutions Up to 1920x1200
Video Input Formats Component Video: YPbPr / YCbCr
Audio Input Formats Analog Stereo Audio: 20KΩ impedance
Audio Output Formats HDMI with embedded audio
Audio Bandwidth 20 Hz to 20 kHz
Input Connections
Component Video Input 1x 3x RCA female connectors, Stereo Audio on 2x RCA female connectors
Analog RGB Input 1x HD15 (VGA) female connector, Stereo Audio on 1x 3.5mm PC audio female connector
HDMI / DVI Input 1x HDMI 19-pin female connector, Stereo Audio on 1x 3.5mm PC audio female connector
Power Input 1x 5.5 / 2.5 mm locking connector
Output Connections:
HDMI Output 1x HDMI 19-pin female connector
Scaling Engine
Phase Lock Loops 8-bit, Triple-Analog-to-Digital Converter
De-Interlacing 3D Motion-Adaptive De-Interlacing with 3D Noise Reduction
Pull-Down 3:2 with 2:2 recovery
Control
Front Panel 4x Buttons with On-Screen Display navigation
IR Remote Control IR Remote Control with On-Screen Display navigation
Mechanical:
Dimensions (H-W-D) 1.0" x 7.1" x 5.3" (26.0 mm x 180.1 mm x 135.3 mm)
Weight 17.1 oz. (484 g)
Environmental:
Operating Temperature 0° to +50° C (+32° to +122° F)
Storage Temperature -10° to +70° C (+14° to +158° F)
Humidity (storage / operating) 10% to 90% (non-condensing)
Power Requirements:
External AC Power Adapter Input: 100~240VAC / 50-60Hz
Output: 5VDC, 2.0A
Other:
Regulatory Approvals: Converter / Scaler Unit FCC, CE, RoHS
AC Power Adapter FCC, CE, UL, C-UL, CEC, GS, PSE, RoHS
Warranty: 3 Years Parts and Labor
Model Number: DVI-3531a (AV-PC to HDMI Converter / Scaler)
Accessories Included:
1x External AC Power Adapter, 1x IR Remote Control Unit, 1x User Guide
Optional Accessories
International AC Power Adapter (USA, Euro, UK, Australia)
