MXWall-LP - SmartAVI - 8-Input 12-Output Video Wall Processor and Matrix Switch. MX Wall LP
MXWall-LP Video Wall Processor and Matrix Switch
Description:
The MXWall-LP is a video wall processor and matrix switch with up to 12 HDMI outputs. Compact, plug-and-play, and excellent for mid-sized video wall displays between 4-12 screens with resolutions up to 1080p (1920 x 1080 @ 60 Hz) Full HD. The MXWall-LP is simple to control, featuring optional RS-232 control and SmartAVI’s intuitive MXwall Manager software, which is included for free. MXwall Manager software lets users manually create and adjust their ideal video wall displays using simple click-and-drag operations, making it easy for users of any technical skill level. The MXWall-LP also features TCP/IP web control and a tablet software manager that works over WiFi, providing users with flexible control options. Its compact design and powerful processing make the MXWall-LP an excellent solution for any video wall installation. Plug-and-play enabled, the MXWall-LP is immediately ready for use as soon as it is connected to an AV setup—no additional drivers or installers required. Its exceptional hardware delivers stunning video wall displays in environments such as retail spaces, educational facilities, conference rooms, command centers, event halls, entertainment venues, airports, and more.
Features:
• Complete hardware solution
• Plug-and-play ready
• 8 HDMI Inputs
• Up to 12 HDMI Outputs
• Supports DVI with adapters
• 1080p (1920 x 1080 @ 60 Hz) Output Resolution
• Creative video wall display modes
• Easy control (software, RS-232, and TCP/IP)
• HDCP and HDMI 1.4 compliant
• User-Friendly MXwall Manager Software
• Ideal for 8×8 and 8×12 video wall setups

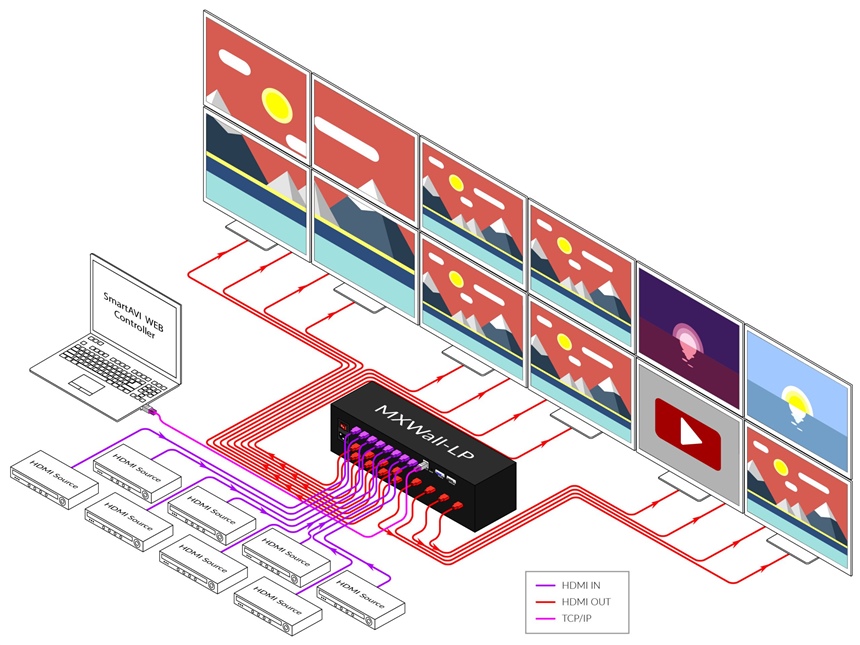

MXWall-LP Diagram
Specification:
VIDEO
Video Amplifier Bandwidth 3.2 Gbps
Input Video Signal Video (TMDS) 0.5~1.0Vpp
Input DDC Signal 5 volts
Compliances HDMI 1.4, HDCP
Pixel Rates Clock frequency beyond 165Mpix/
second
Format 4:4:4 and 4:2:2 data input formats
Resolution 480p, 720p, 1080i, 1080p
Input Card Format 4-port HDMI card
Output Card Format 4-port HDMI card
Input Slots Up to 8 (2 cards)
Output Slots Up to 12 (3 cards)
Video Type RGB/YCBCR : 24/30/36-bits,YCBCR:
8/10/12/16/20/24-bits
OTHER
Working Temperature 32-122 °F (0-50 °C)
Storage Humidity Up to 95% (No Condensation)
Weight 20 lbs
Dimensions 17 in (W) x 3.5 in (H) x 15 in (D)
Power Supply 50/60Hz, 100~240 VAC
Consumption 300W
CONTROLS
RS-232 DB9 Female, 115200 BPS, N, 8, 1,
No flow control
TCP/IP RJ45, UDP
MXwall MANAGER SOFTWARE
Operating System Windows 7-10, Android 7 and above
