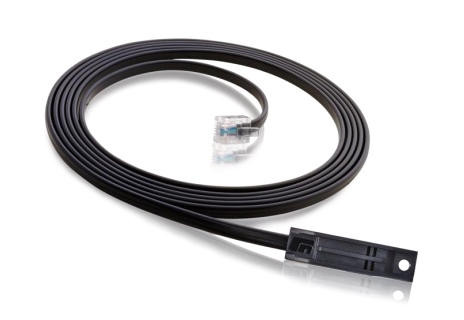

RN1091 RNX Temperature & Humidity Sensor (RNX Sensor)

RNX Temperature & Humidity Sensor

Description:

RN1091 Temperature & Humidity sensors provide a valuable extension to our innovative monitoring system, interfacing directly with any UPDU™ or E3METER™ smart PDU via a robust digital connection. Their easy, toolless rack mounting ensures high-accuracy temperature & humidity measurement at various locations within a server rack.

Features:

• Temperature & Humidity Sensors provide a valuable extension to the monitoring system.
• Interface directly to any UPDU™ or E3METER™ smart PDU.
• Easy toolless rack mounting assures high accuracy.
• Temperature & Humidity measurement in different locations of a server rack.

Specification:

Operating Temperature 0 - +60°C (recommended) / -40 - +85° C (maximum)
Operating Humidity 0 - 100% RH non-condensing
Accuracy Temperature +/- 0.3°C Humidity +/- 2%, factory calibrated
Connector RJ-12, 4p
Size of the Sensor Head 10 x 40 x 7 mm
I/F to UPDU™ or E3METER™ smart
PDU Digital (with checksum)
Cable Flexible, available lengths: 2m (other lengths on request)
Mounting 2 integrated magnets, 3mm mounting hole
Installation Plug and play
Warranty 2 years
