NX1-M1100 - Raritan NX1 PDUs - Metered Node 1U PDU, 1 Phase, 16A, 8C13 locking outlets, C20 inlet (accepts ref. 646905 and 646906)

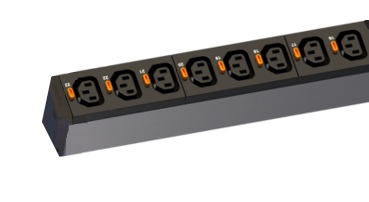

Raritan NX1 PDU (8x C13)
Description:
The Raritan NX1 Basic PDU range delivers reliable, safe, and customizable power distribution for data centers. Designed with flexibility and scalability in mind, it ensures uptime and operational efficiency in demanding environments (up to 60°C). Built on a common platform, it supports standard needs and can be configured to meet specific requirements.
Features:
Reliable & Safe
• Hydraulic magnetic circuit protection against overloads
• 60°C temperature rating for high-demand environments
• Aluminium chassis withstands heat and improves durability
Flexibility & Customization
• Available in 0U and 1U form factors
• Configurable outlet types: C13, C19, German, UTE, or BS 1363
• Numbering options: per circuit or unit; colour-coded chassis available
• Choice of input type, cord position (top/bottom/side), connector type (C20, C14, IEC 60306, etc.), and length (0.5–6 m, standard or LSZH cables)
Outlet & Cord Systems
• High-density outlet modules for compact racks & better airflow
• Auto-locking outlets with 100 Newton retention force (prevents accidental unplugging)
• Server-side locking cords (C13, C19) compatible with standard inlets
• Numbered outlets for easier cable management
• 330° rotating input cord for reduced tension and easier rack integration
Monitoring & Control
• Hot-swappable local power meter (on selected models) with ±1% accuracy
• Monitors Amps, Volts, kWh, Power Factor
• Alerts at 80% load capacity
Additional Options
• LED power indicator (optional)
• Colour-coding for easy circuit identification
• Mounting brackets for 0U vertical racks
• Locking caps for C13/C19 outlets
Specification:
NX1 PDU Range - General Specification:
Form Factors: 0U (vertical) or 1U (horizontal, 19” mounting)
Outlet Types: C13, C19 (standard); UTE, BS 1363 (UK), Locking outlets
Inlet Types: IEC 60306, C14, C20, regional (German, French, British), or terminal block
Cord Options: Standard or LSZH, length 0.5–6 m, rotatable or fixed entry
Protection: Hydraulic magnetic circuit breakers, high interruption capacity
Temperature Rating: 60°C
